Prestige 2602HW Series User’s Guide

Chapter 17 VPN Screens

227

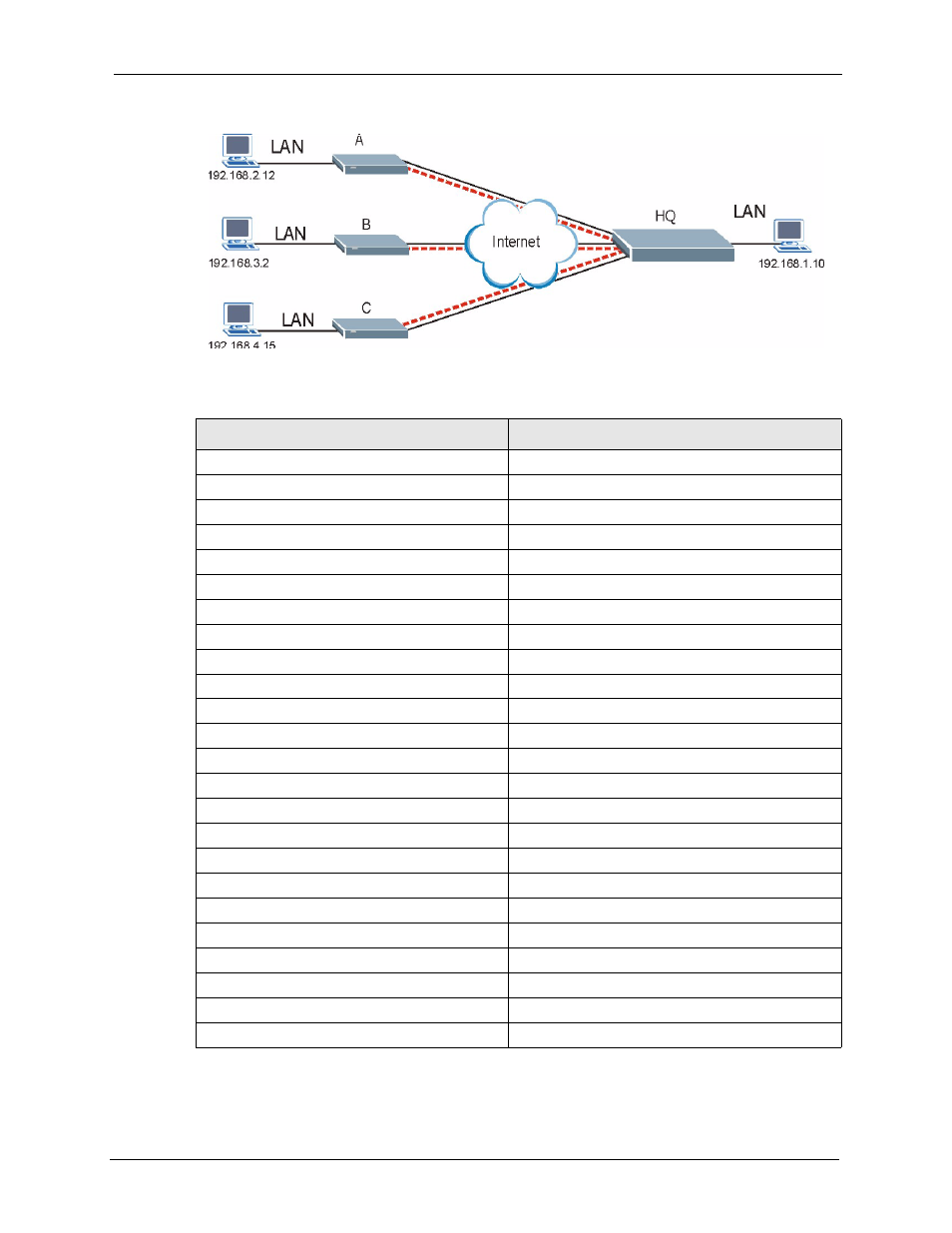

Figure 96 Telecommuters Using Unique VPN Rules Example

Table 71 Telecommuters Using Unique VPN Rules Example

TELECOMMUTERS

HEADQUARTERS

All Telecommuter Rules:

All Headquarters Rules:

My IP Address 0.0.0.0

My IP Address: bigcompanyhq.com

Secure Gateway Address: bigcompanyhq.com

Local IP Address: 192.168.1.10

Remote IP Address: 192.168.1.10

Local ID Type: E-mail

Peer ID Type: E-mail

Local ID Content: [email protected]

Peer ID Content: [email protected]

Telecommuter A (telecommutera.dydns.org)

Headquarters Prestige Rule 1:

Local ID Type: IP

Peer ID Type: IP

Local ID Content: 192.168.2.12

Peer ID Content: 192.168.2.12

Local IP Address: 192.168.2.12

Secure Gateway Address: telecommuter1.com

Remote Address 192.168.2.12

Telecommuter B (telecommuterb.dydns.org)

Headquarters Prestige Rule 2:

Local ID Type: DNS

Peer ID Type: DNS

Local ID Content: telecommuterb.com

Peer ID Content: telecommuterb.com

Local IP Address: 192.168.3.2

Secure Gateway Address: telecommuterb.com

Remote Address 192.168.3.2

Telecommuter C (telecommuterc.dydns.org)

Headquarters Prestige Rule 3:

Local ID Type: E-mail

Peer ID Type: E-mail

Local ID Content: [email protected]

Peer ID Content: [email protected]

Local IP Address: 192.168.4.15

Secure Gateway Address: telecommuterc.com

Remote Address 192.168.4.15
