Prestige 2602HW Series User’s Guide

Chapter 34 SNMP Configuration

345

C

H A P T E R

34

SNMP Configuration

This chapter explains SNMP Configuration menu 22.

34.1 About SNMP

Simple Network Management Protocol (SNMP) is a protocol used for exchanging
management information between network devices. SNMP is a member of the TCP/IP
protocol suite. Your Prestige supports SNMP agent functionality, which allows a manager
station to manage and monitor the Prestige through the network. The Prestige supports SNMP
version one (SNMPv1) and version two c (SNMPv2c). The next figure illustrates an SNMP
management operation. SNMP is only available if TCP/IP is configured.

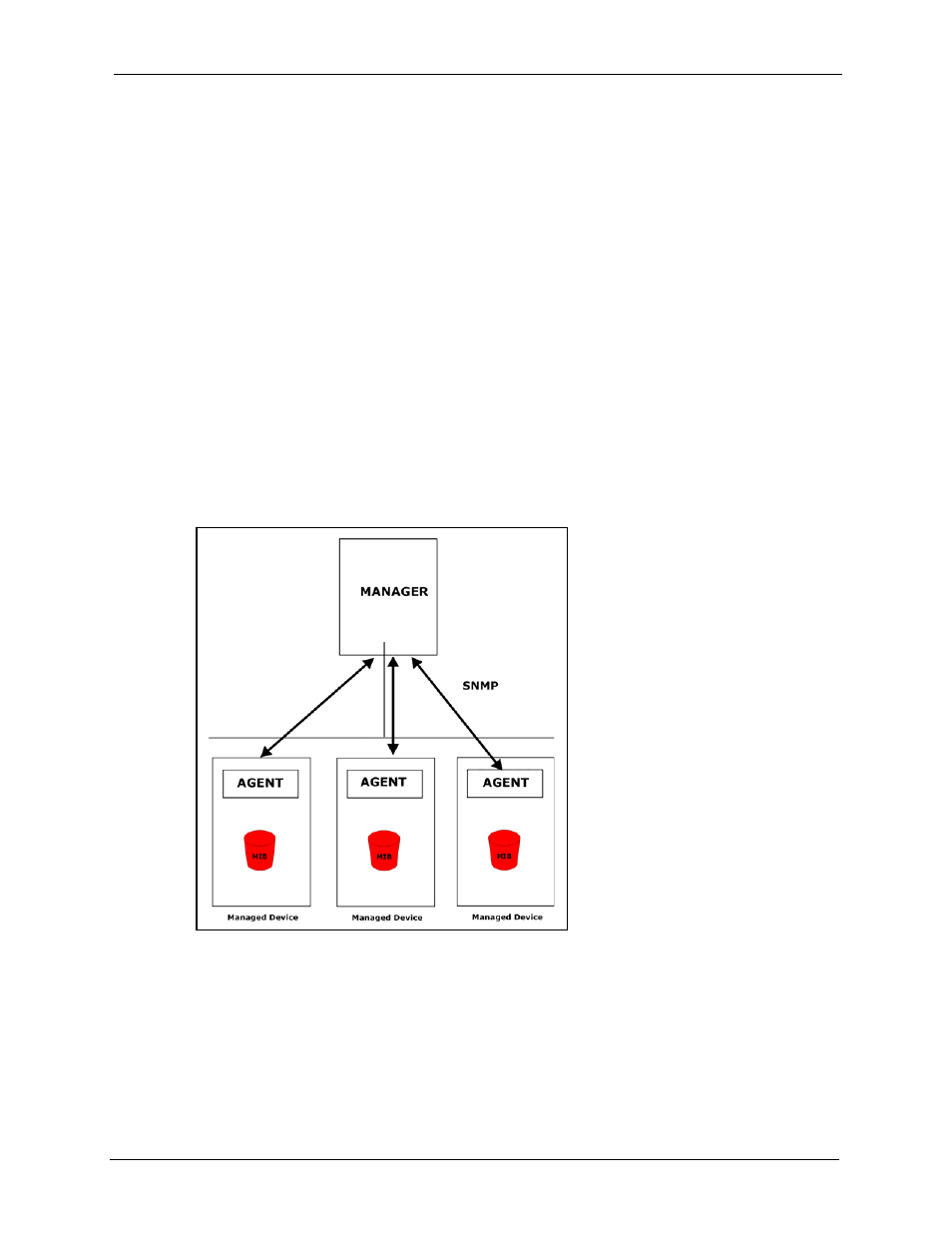

Figure 200 SNMP Management Model

An SNMP managed network consists of two main components: agents and a manager.

An agent is a management software module that resides in a managed device (the Prestige).
An agent translates the local management information from the managed device into a form
compatible with SNMP. The manager is the console through which network administrators
perform network management functions. It executes applications that control and monitor
managed devices.
