Prestige 2602HW Series User’s Guide
204
Chapter 17 VPN Screens
Click VPN and Setup to open the VPN Summary screen. This is a read-only menu of your
IPSec rules (tunnels). The IPSec summary menu is read-only. Edit a VPN by selecting an
index number and then configuring its associated submenus.

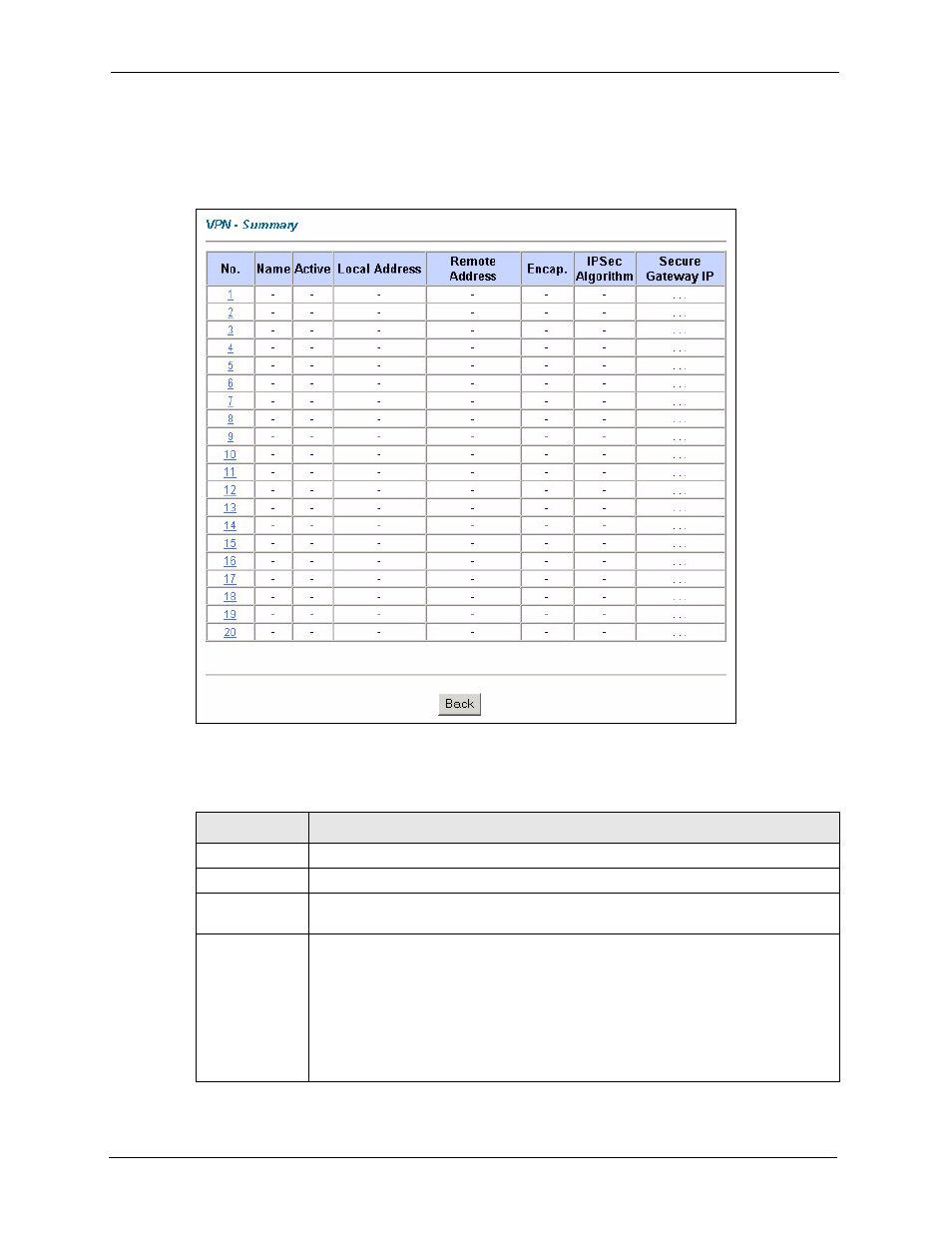

Figure 86 VPN Summary
The following table describes the fields in this screen.
Table 60 VPN Summary
LABEL
DESCRIPTION
No.
This is the VPN policy index number. Click a number to edit VPN policies.
Name
This field displays the identification name for this VPN policy.
Active
This field displays whether the VPN policy is active or not. A Yes signifies that this
VPN policy is active. No signifies that this VPN policy is not active.
Local Address
This is the IP address(es) of computer(s) on your local network behind your Prestige.
The same (static) IP address is displayed twice when the Local Address Type field
in the VPN-IKE (or VPN-Manual Key) screen is configured to Single.
The beginning and ending (static) IP addresses, in a range of computers are
displayed when the Local Address Type field in the VPN-IKE (or VPN-Manual Key)
screen is configured to Range.
A (static) IP address and a subnet mask are displayed when the Local Address
Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Subnet.
