Reading from the configuration register words is similar, but the upper host_opcode bit
should be ‘1,’ as shown in
. In this case, the contents of the register appear on
host_rd_data
the host_clk edge after the register address is asserted onto
host_addr
.

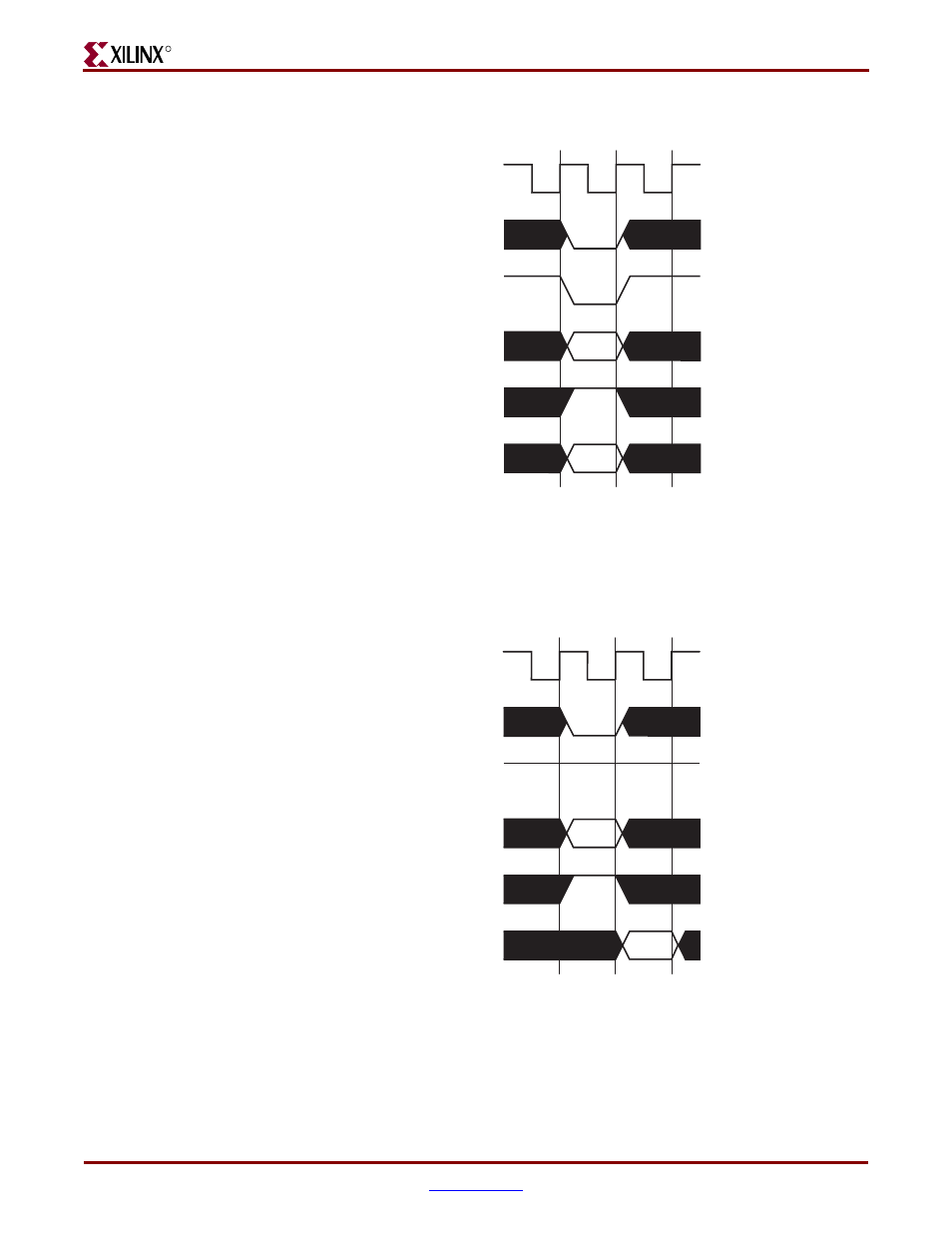

Figure 8-1:
Configuration Register Write Timing
Figure 8-2:
Configuration Register Read Timing
host_clk
host_addr[8:0]
host_addr[9]
host_opcode[1]
host_miim_sel
host_wr_data[31:0]
host_clk
host_addr[8:0]
host_addr[9]
host_opcode[1]
host_miim_sel
host_rd_data[31:0]
