2. Locate the Upper Media Sensor. Refer to Figure 4. The Upper Media
Sensor is directly below the adjustment screw head.
3. Loosen the Upper Media Sensor Adjustment screw (Phillips head).
4. Slide the upper sensor along the slot to the desired position. When using
label stock that has a gap between labels (die-cut label stock), position
the media sensor anywhere along the gap EXCEPT where the rounded
corners of the label are detected. When using tagstock, position the up-
per sensor directly over the hole or notch.
5. Tighten the screw.
Lower Media Sensor Adjustment
Refer to Figure 5 throughout this procedure.
1. Locate the Lower Media Sensor assembly (a spring clip holding a
circuit board) near the bottom rear of the printhead assembly.
2. Position the sensor by sliding it in its slot so that the two brass-colored
infrared emitters are centered under the upper sensor.
Zebra XiII-Series User’s Guide
17
LOWER
MEDIA SENSOR

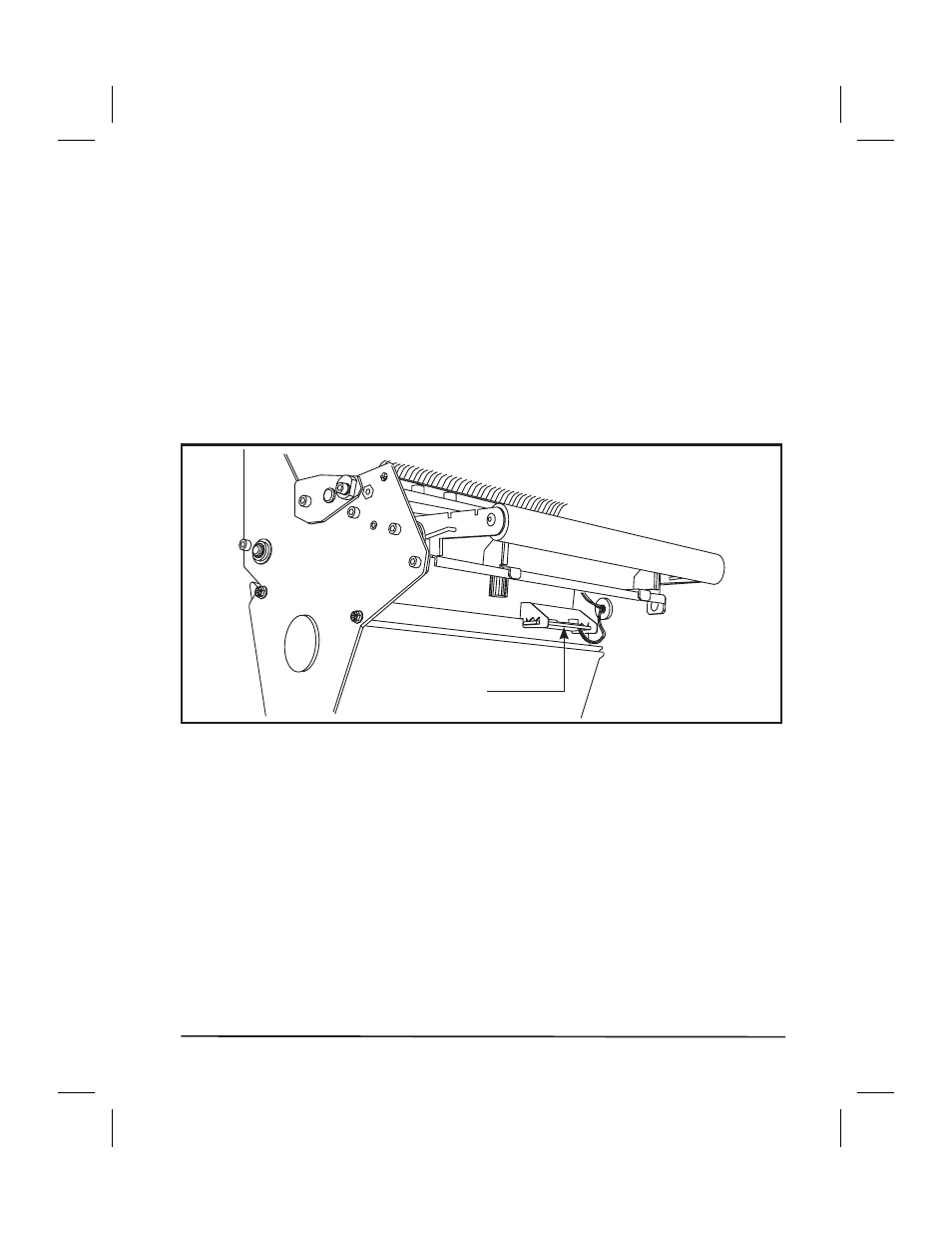

Figure 5. Lower Media Sensor Adjustment
