RS-232 Interconnections
The Zebra XiII printer is configured as Data Terminal Equipment (DTE).
Figure 24 illustrates the internal connections of the printer’s RS-232 con-
nector.
Figure 25 illustrates the connections required to interconnect the XiII
printer with the standard 9 pin serial port connector on a PC.
NOTES: If using a 9 pin to 25 pin adapter plug attached to the computer,
use a null modem cable between the adapter plug and the Zebra
printer.
To connect the printer to other DTE devices with DB-25 connec-
tors (such as the serial port of a PC), an RS-232 null modem
(crossover) cable should be used.
Zebra
XiII-Series User’s Guide
89
J3
RS-232 Connector (DTE)
Rear Panel DB-25S

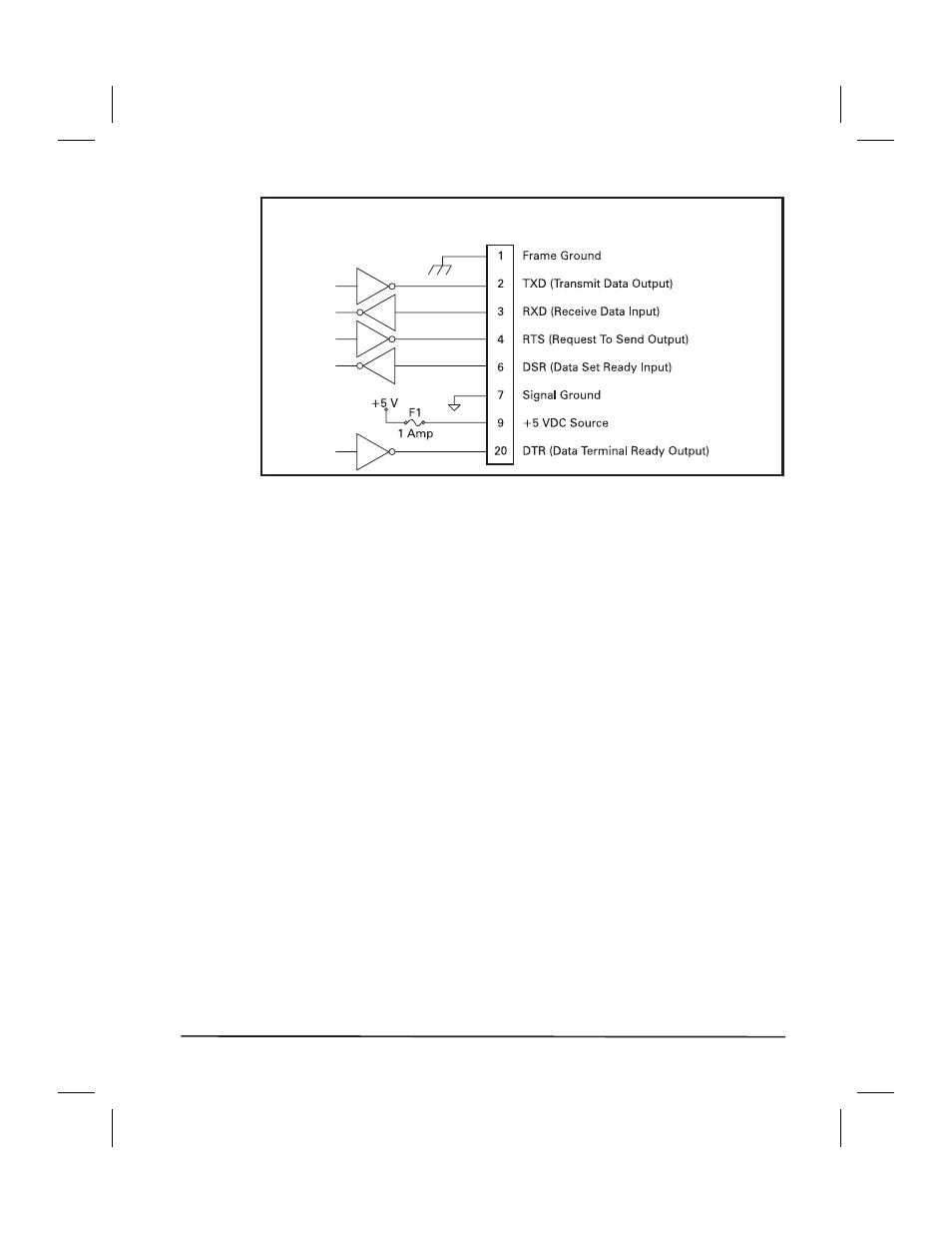

Figure 24. RS-232 Connections
101
