GS-3012/GS-3012F User’s Guide
VLAN 7-9

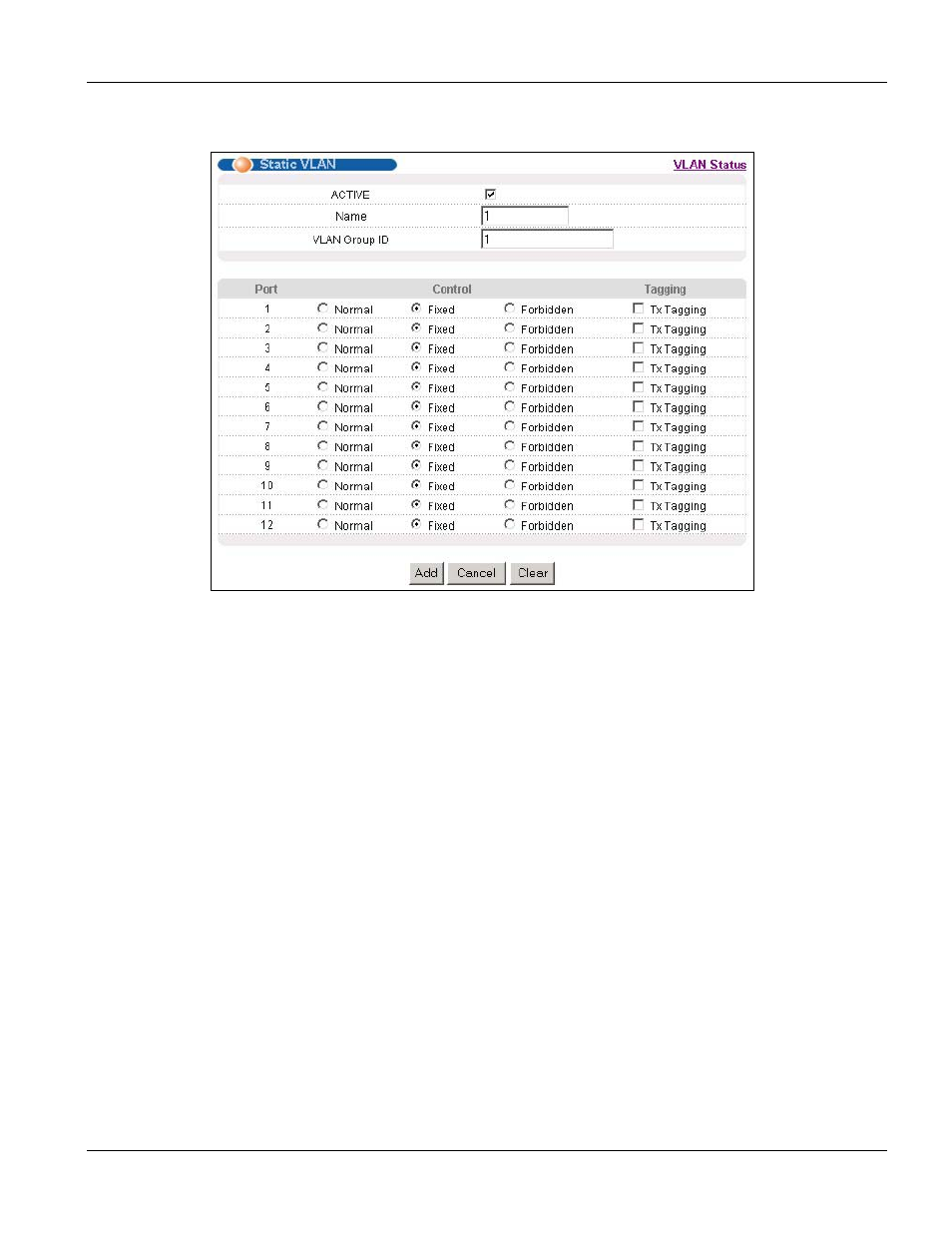

VID1 Example Screen
Figure 7-7 VID 1 Example Screen
7.3 Introduction to Port-based VLANs
Port-based VLANs are VLANs where the packet forwarding decision is based on the destination MAC address
and its associated port.
Port-based VLANs require allowed outgoing ports to be defined for each port. Therefore, if you wish to allow two
subscriber ports to talk to each other, for example, between conference rooms in a hotel, you must define the
egress (an egress port is an outgoing port, that is, a port through which a data packet leaves) for both ports.
Port-based VLANs are specific only to the switch on which they were created.
The port-based VLAN setup screen is shown next. The CPU port (for in-band switch management) forms a
VLAN with all Gigabit ports.
7.3.1 Configuring a Port-based VLAN
Select Port Based as the VLAN Type in the Switch Setup screen under Basic Setting and then click VLAN
under Advanced Application to display the next screen.
