GS-3012/GS-3012F User’s Guide
20-10 Multicast
The following table describes the labels in this screen.
Table 20-5 MVR Group Configuration
LABEL DESCRIPTION
Multicast VLAN ID Select a multicast VLAN ID (that you configured in the MVR screen) from the drop-down list box.
Name Enter a descriptive name for identification purposes.
Start Address Enter the starting IP multicast address of the multicast group in dotted decimal notation.
Refer to Section 20.1.1 for more information on IP multicast addresses.
End Address Enter the ending IP multicast address of the multicast group in dotted decimal notation.
Enter the same IP address as the Start Address field if you want to configure only one IP address for a
multicast group.
Refer to Section 20.1.1 for more information on IP multicast addresses.
Add
Cancel
Click Add to save the settings.
Click Cancel to discard all changes.
MVLAN This field displays the multicast VLAN ID.
Name This field displays the descriptive name for this setting.
Start Address This field displays the starting IP address of the multicast group.
End Address This field displays the ending IP address of the multicast group.
Delete Select Delete All and click Delete to remove all entries from the table.
Select Delete Group and click Delete to remove the selected entry(ies) from the table.
Cancel Select Cancel to clear the checkbox(es) in the table.
20.7.1 MVR Configuration Example

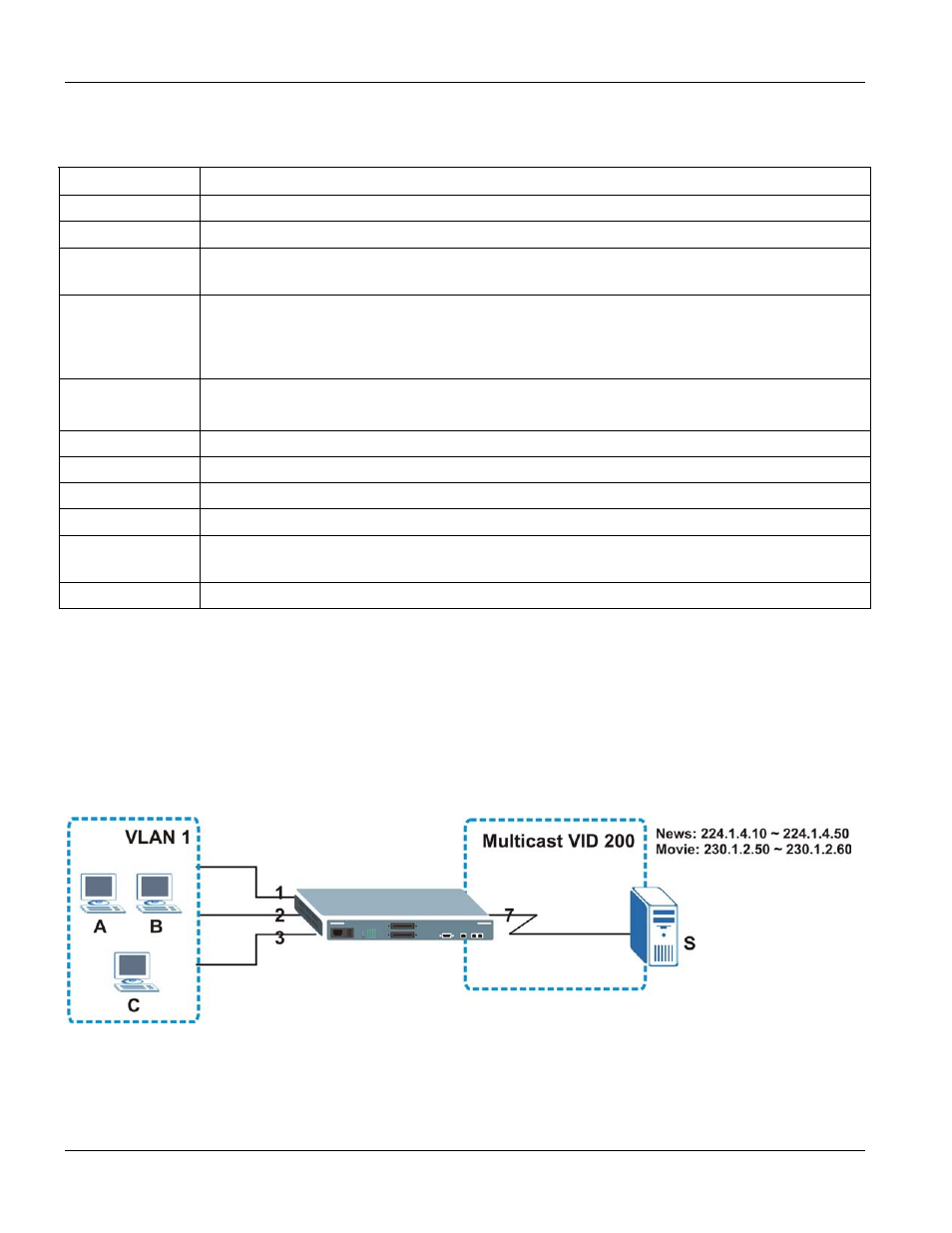

The following figure shows a network example where ports 1, 2 and 3 on the switch belong to VLAN 1. In
addition, port 7 belongs to the multicast group with VID 200 to receive multicast traffic (the News and Movie
channels) from the remote streaming media server, S. Computers A, B and C in VLAN are able to receive the
traffic.
Figure 20-8 MVR Configuration Example
