Page 42
GS-3012/GS-3012F User’s Guide
3-4
Hardware Connections

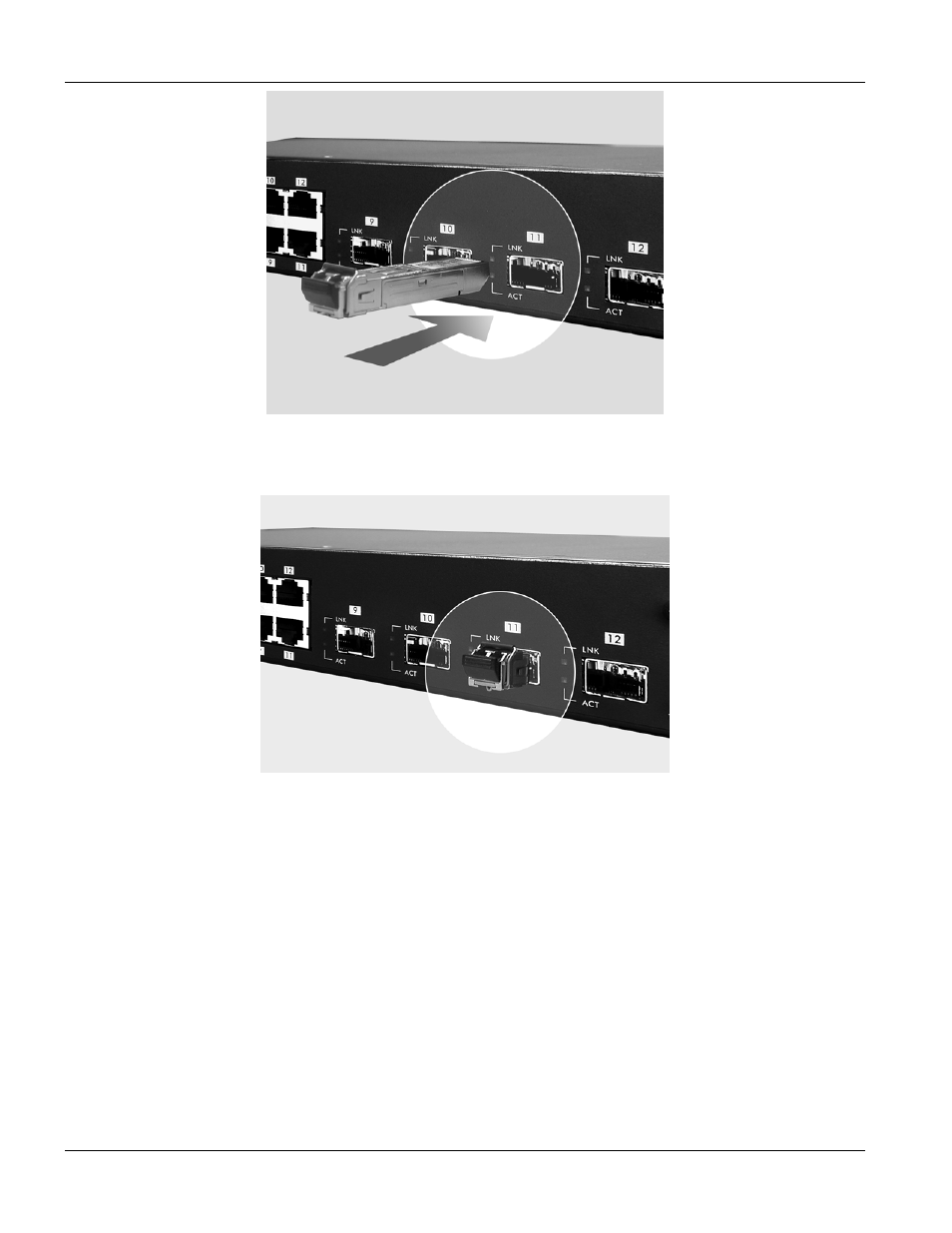

Figure 3-3 Transceiver Installation Example
Figure 3-4 Installed Transceiver
Transceiver Removal
Use the following steps to remove a mini GBIC transceiver (SFP module).
1.
Open the transceiver’s latch (latch styles vary).
2.
Pull the transceiver out of the slot.
