GS-3012/GS-3012F User’s Guide
Multicast 20-11
To configure the MVR settings on the switch, create a multicast group in the MVR screen and set the receiver and
source ports.

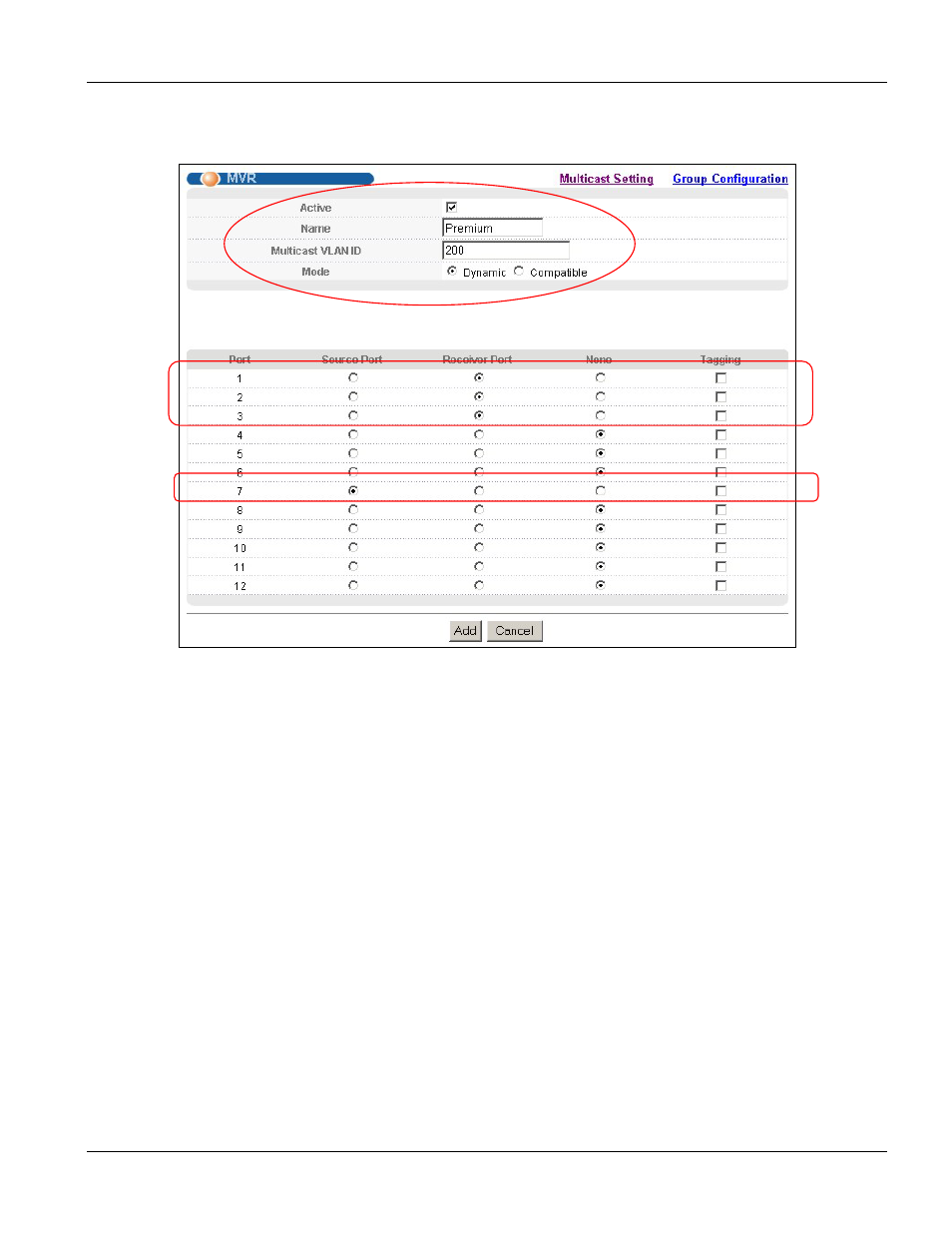

Figure 20-9 MVR Configuration Example
To set the switch to forward the multicast group traffic to the subscribers, configure multicast group settings in the
Group Configuration screen. The following figure shows an example where two multicast groups (News and
Movie) are configured for the multicast VLAN 200.
