GS-3012/GS-3012F User’s Guide
20-8 Multicast

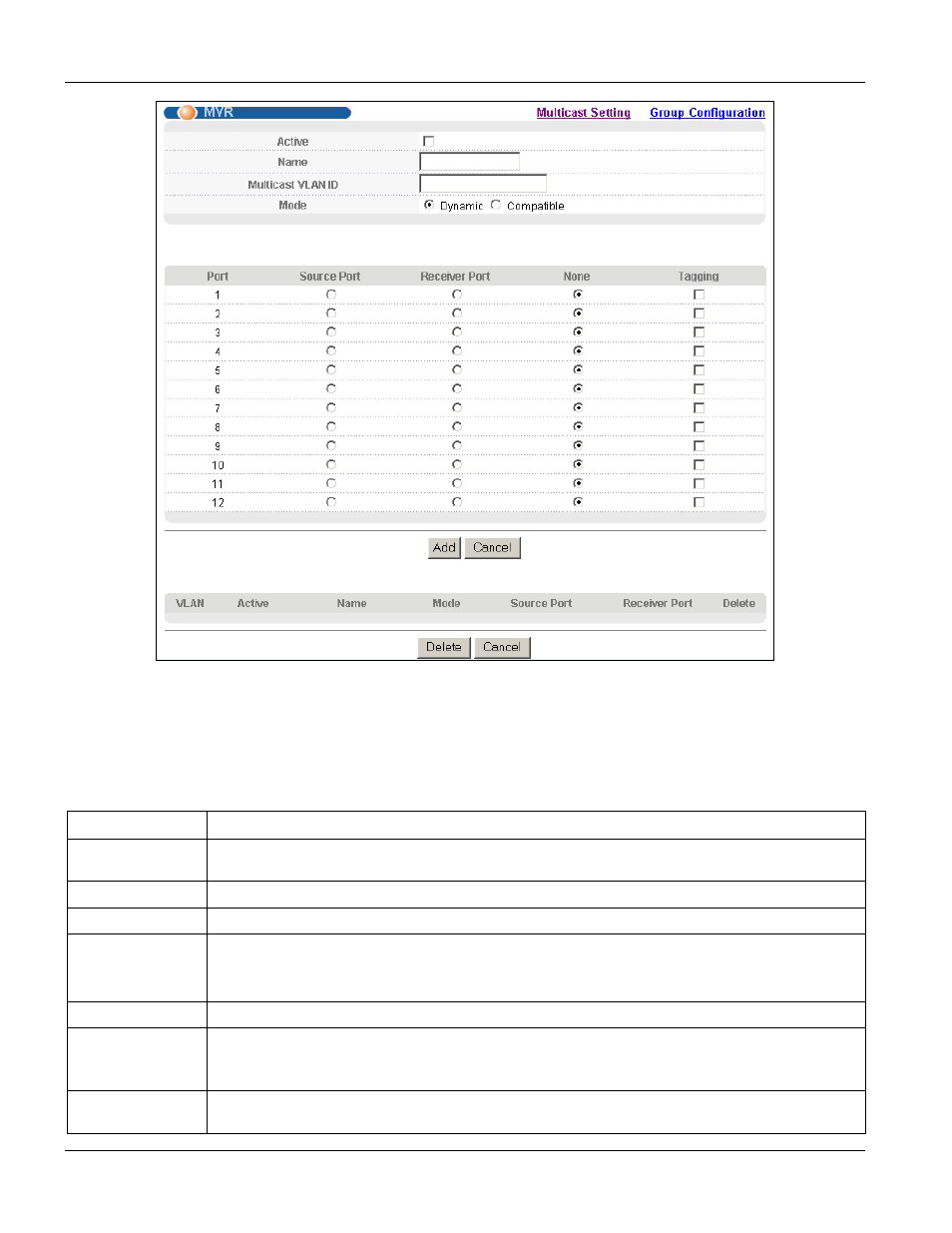

Figure 20-6 MVR
The following table describes the related labels in this screen.
Table 20-4 MVR
LABEL DESCRIPTION
Active Select this check box to enable MVR to allow one single multicast VLAN to be shared among different
subscriber VLANs on the network.
Name Enter a descriptive name (up to 32 printable ASCII characters) for identification purposes.
Multicast VLAN ID Enter the VLAN ID (1 to 4094) of the multicast VLAN.
Mode Specify the MVR mode on the switch. Choices are Dynamic and Compatible.
Select Dynamic to send IGMP reports to all MVR source ports in the multicast VLAN.
Select Compatible to set the switch not to send IGMP reports.
Port This field displays the port number on the switch.
Source Port This field is applicable for Ethernet ports.
Select this option to set this port as the MVR source port that sends and receives multicast traffic. All
source ports must belong to a single multicast VLAN.
Receiver Port Select this option to set this port as a receiver port that only receives multicast traffic. A receiver port
cannot belong to a multicast VLAN.
