7.8 PLL2 and PLL2 Controller
PLLV2
PLL2
SYSCLK2 (From PLL1 Controller)
SYSCLK1
DDR2
Memory
Controller
EMAC
CLKIN2
(B)(C)
C162
560 pF
EMI Filter
+1.8 V
C161
0.1 pF
PLL2 Controller
TMS320C6454 DSP
PLLM
x20
/2
1
0
/x
(A)
1
SYSREFCLK
SYSCLK3 (From PLL1 Controller)
PLLREF
PLLOUT
DIVIDER D1
TMS320C6454
Fixed-Point Digital Signal Processor
SPRS311A – APRIL 2006 – REVISED DECEMBER 2006
The secondary PLL controller generates interface clocks for the Ethernet media access controller (EMAC)
and the DDR2 memory controller.
As shown in
, the PLL2 controller features a PLL multiplier controller and one divider (D1). The
PLL multiplier is fixed to a x20 multiplier rate and the divider D1 can be programmed to a ÷2 or ÷5 mode.
PLL2 power is supplied externally via the PLL2 power supply (PLLV2). An external PLL filter circuit must
be added to PLLV2 as shown in
. The 1.8-V supply for the EMI filter must be from the same
1.8-V power plane supplying the I/O power-supply pin, DV
DD18
. TI requires EMI filter manufacturer Murata,
part number NFM18CC222R1C3.
All PLL external components (C161, C162, and the EMI Filter) should be placed as close to the C64x+
DSP device as possible. For the best performance, TI requires that all the PLL external components be on
a single side of the board without jumpers, switches, or components other than the ones shown. For
reduced PLL jitter, maximize the spacing between switching signals and the PLL external components
(C161, C162, and the EMI Filter). The minimum CLKIN2 rise and fall times should also be observed. For
the input clock timing requirements, see
, PLL2 Controller Input Clock Electrical Data/Timing.
CAUTION
The
PLL
controller
module
as
described
in
the
TMS320C645x
DSP
Software-Programmable Phase-Locked Loop (PLL) Controller User's Guide (literature
number
) includes a superset of features, some of which are not supported
on the C6454 DSP. The following sections describe the features that are supported; it
should be assumed that any feature not included in these sections is not supported
by the C6454 DSP.
A.
/x must be programmed to /2 for GMII (default) and to /5 for RGMII.
B.
If EMAC is enabled with RGMII, or GMII, CLKIN2 frequency must be 25 MHz.
C.
CLKIN2 is a 3.3-V signal.

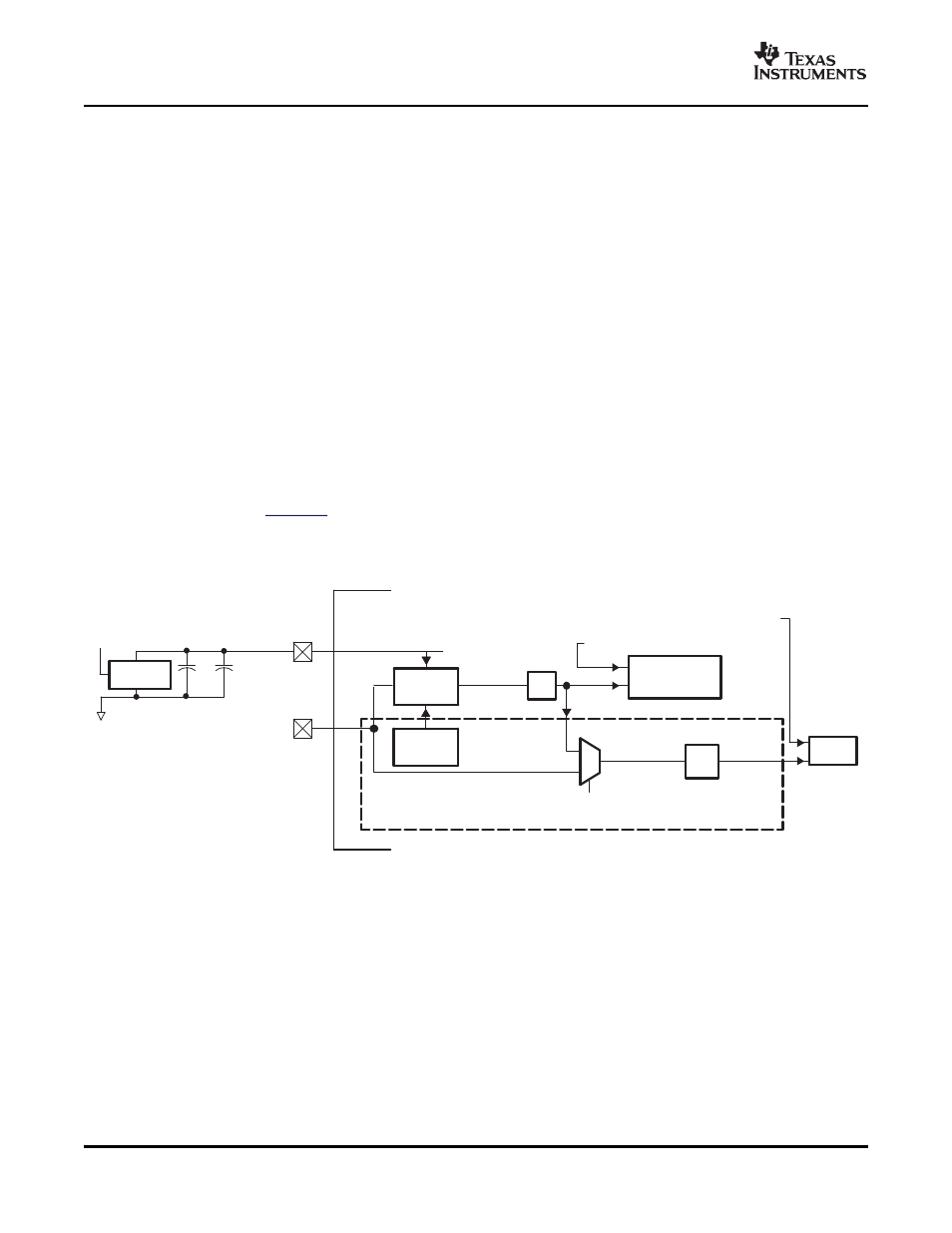

Figure 7-23. PLL2 Block Diagram
