Page 334 of 906 NT5D97 Dual-port DTI2/PRI2 card
553-3001-211 Standard 3.00 August 2005
Table 120 lists the pin attributes for the NTCK79AA cable.

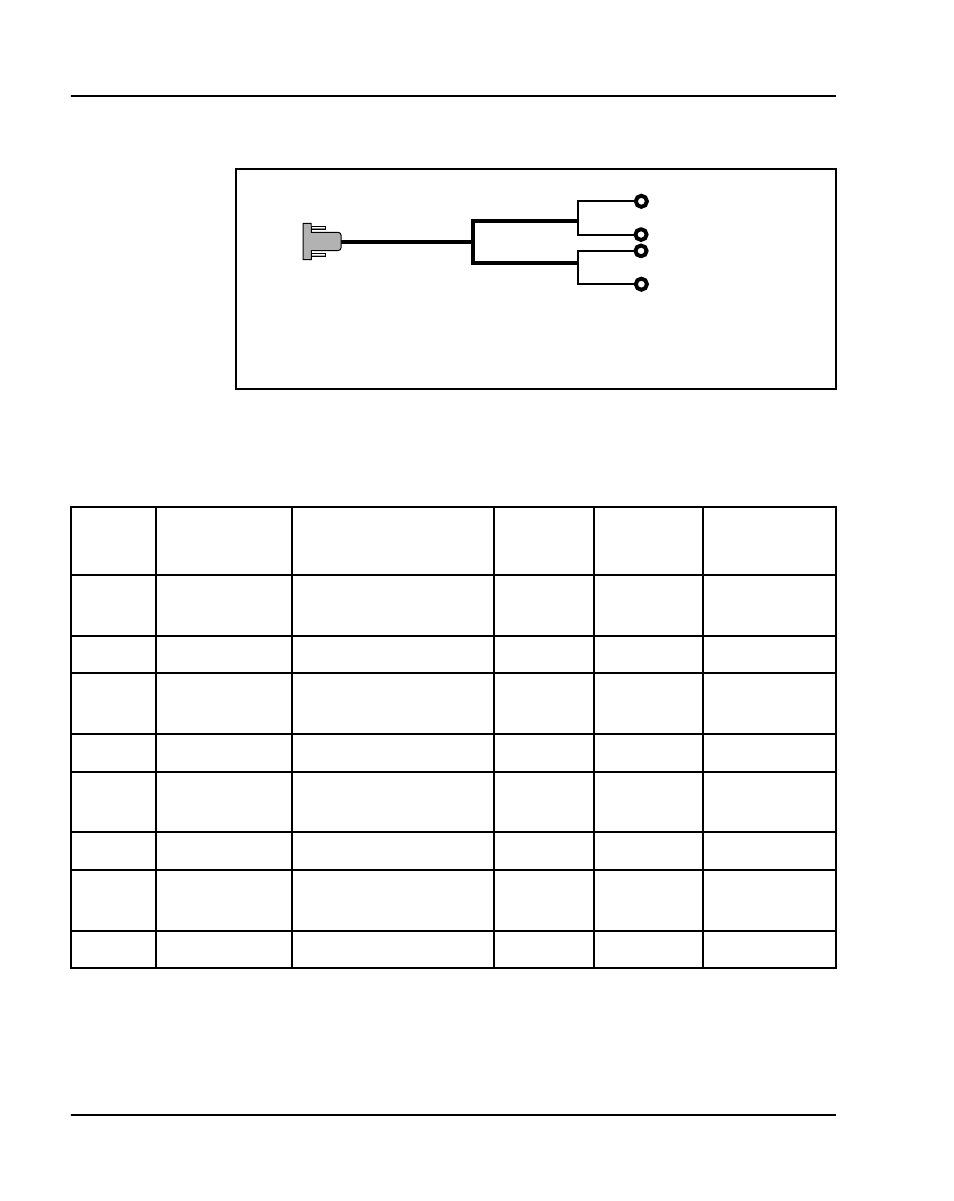

Figure 69
NTCK79AA
Table 120
NTCK79AA cable pins (Part 1 of 2)
Cable Name Description Color
DDP2
pins
NCTE pins
0 T-PRI0TX Trunk 0 Transmit Tip Red P1-1 P2 inner
conductor
0 R-PRI0TX Trunk 0 Transmit Ring Red P1-2 P2 shield
0 T-PRI0RX Trunk 0 Receive Tip Green P1-3 P3 inner
conductor
0 R-PRI0RX Trunk 0 Receive Ring Green P1-4 P3 shield
1 T-PRI1TX Trunk 1 Transmit Tip Red P1-5 P4 inner
conductor
1 R-PRI1TX Trunk 1 Transmit Ring Red P1-6 P4 shield
1 T-PRI1RX Trunk 1 Transmit Tip Green P1-7 P5 inner
conductor
1 R-PRI1RX Trunk 1 Receive Ring Green P1-8 P5 shield
553-7388
P1
P2: Unit 0 Tx
P3: Unit 0 Rx
P4: Unit 1 Tx
P5: Unit 1 Rx
D-type
9 pin, male
BNC
males
