Technical Product Manual - DCT1900
Installation Instructions, Modular Cabinet – Cables
Install-DCT1900/R8/mw 26-1
© 2000-2005
C HAPTER 26
Modular Cabinet – Cables
This chapter gives an overview of the cables used in a system with Modular Cabinets. The main
purpose of this overview is to enable cable repair if necessary.
26.1 Mains Power Cord - RPM 113 3563
26.2 Power Cable Filter/Switch – TRENB 101 02
The power cable filter/switch (see Figure 26–1) is a 2–wire 2.5mm
2
cable with two connectors on
both sides. It is used to supply power from the filter to lower fuse holders in the Modular Cabinet.
This cable does not need to be ordered separately. It is factory connected to the switch.

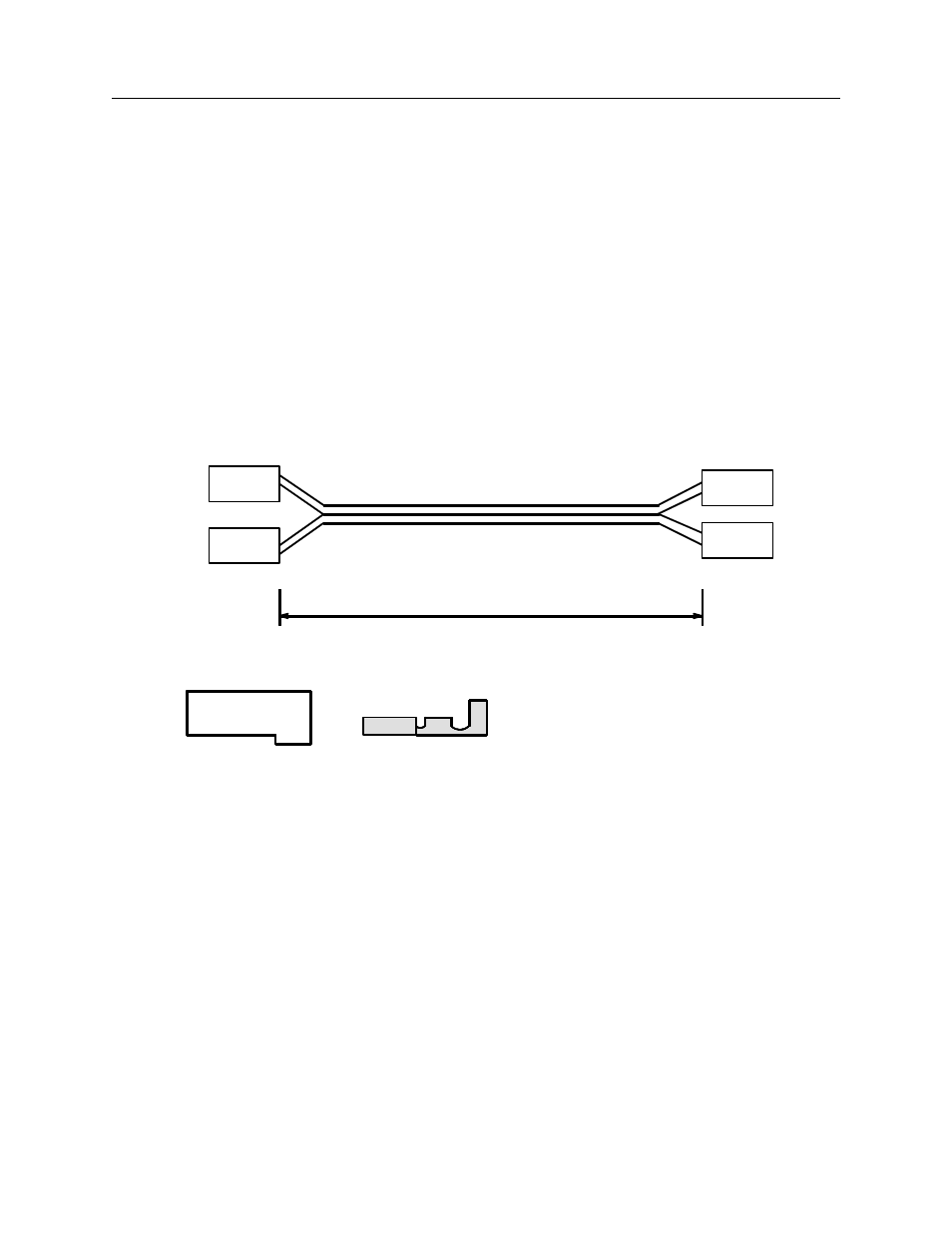

Fig. 26–1 Power Cable Filter/Switch – TRENB 101 02
K2
K3
K4
K1
7.9 in
Cap Faston
