Nortel Networks DCT1900 - Manual (Page 281)

Technical Product Manual - DCT1900
Installation Instructions, Modular Cabinet – CLU/SLU to Base Station Cabling
Install-DCT1900/R8/mw 21-5
© 2000-2005

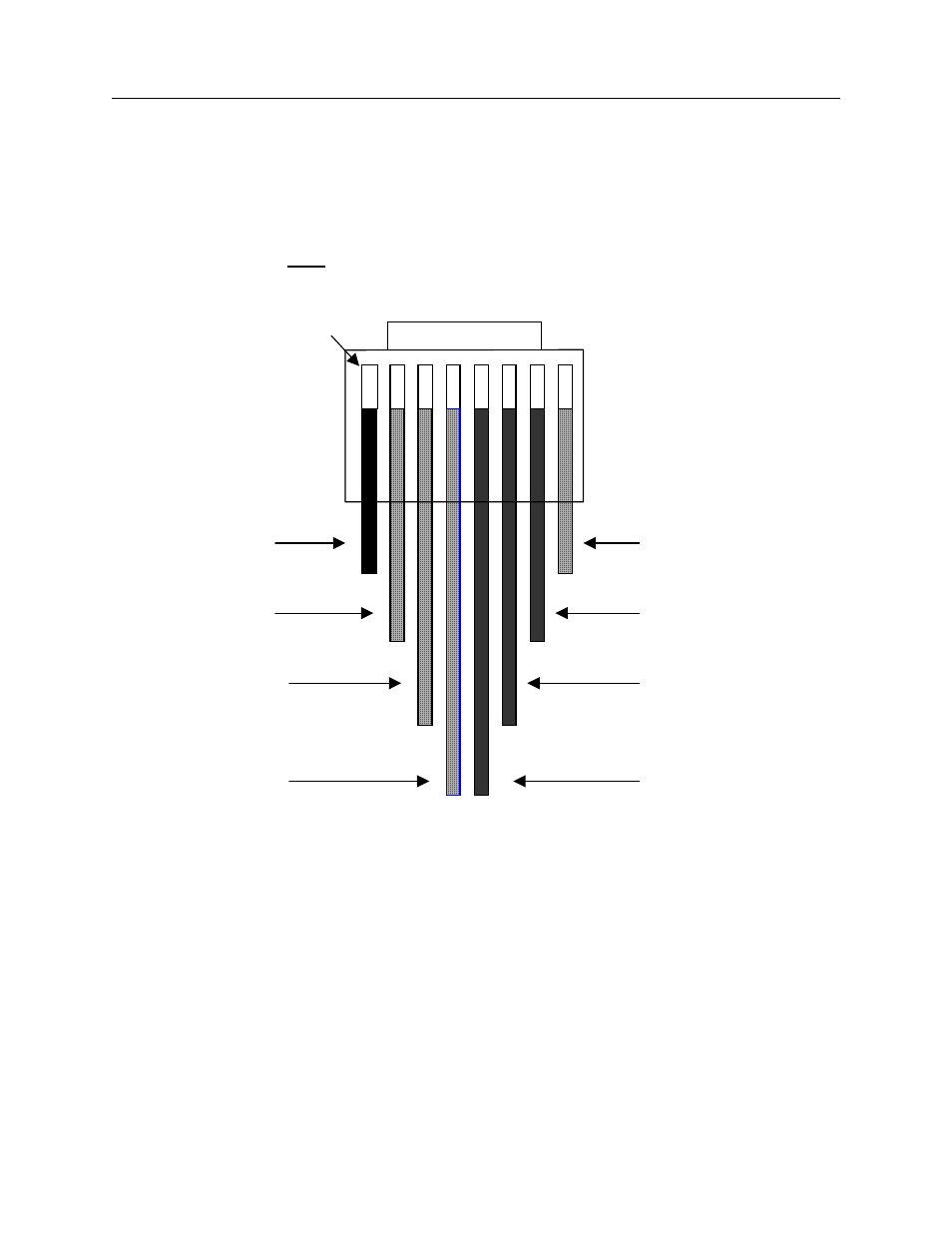

Fig. 21-4 Base Station RJ-45 Connector
If a base station is going to be powered locally, using an AC/DC adapter in the last IDF, then only
the first two pair, SC0 and SC1, should be hooked up for that Base Station on the 66 block. In the
last IDF, connect the output of the AC/DC adapter to the white/green pair going out to the RJ45
connector (Fig. 21-4) of the Base Station as shown in Figure 21-5.
---------------------------------- BE AWARE -------------------------------------------
----THIS IS NOT PINNED OUT AS A 568A OR 568B CONNECTOR-----
Green/White
White/Green Brown/White
Blue/White
Orange/White
White/Blue
White/Orange
White/Brown
PIN 1
