Technical Product Manual - DCT1900
Installation Instructions, Modular Cabinet – Installation Steps
3-4 Install-DCT1900/R8/mw
© 2000-2005
Note:
The board position label should not be placed on the leading edge at the top of the cabinet for this
will isolate the enclosure EMI shielding.

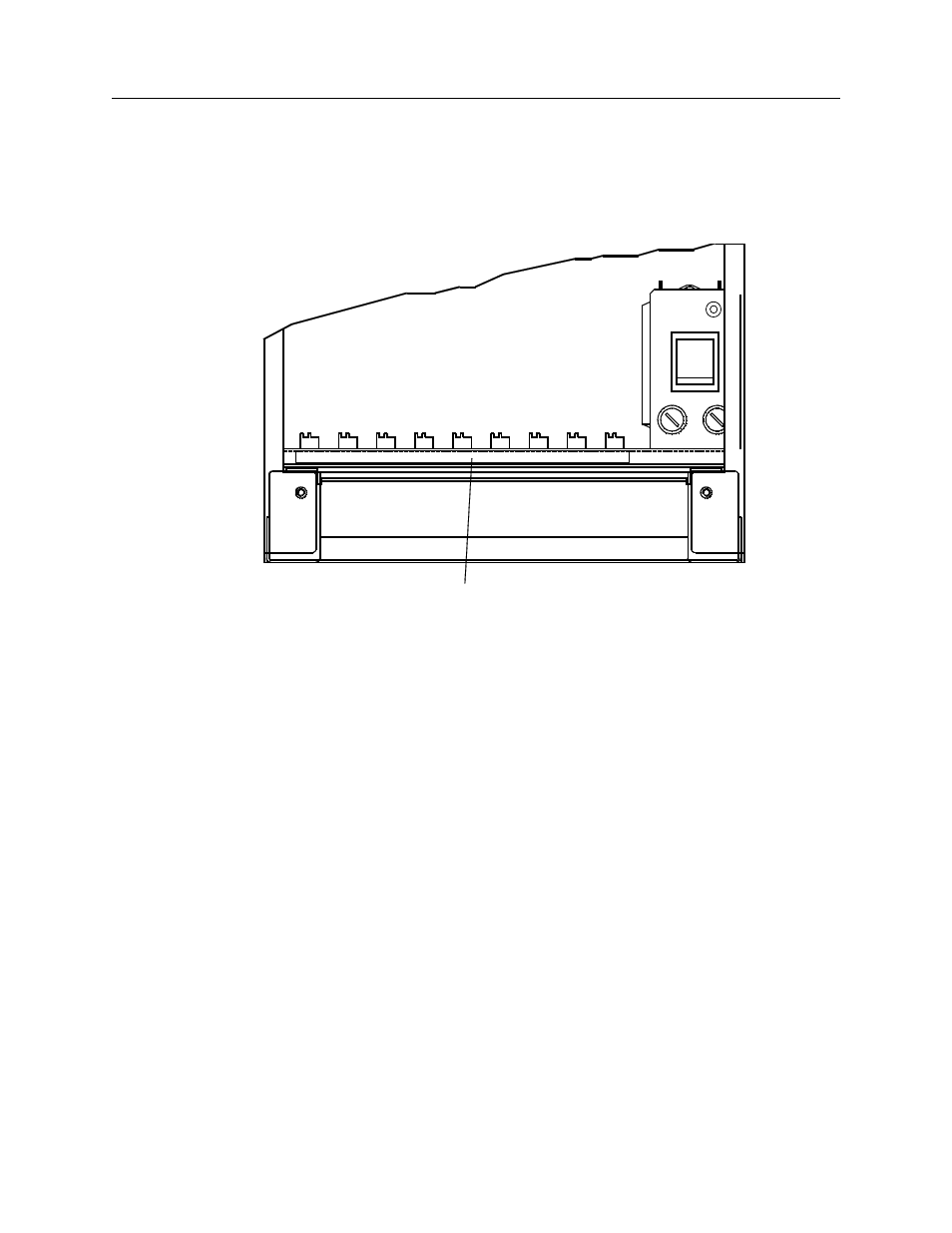

Fig. 3–2 Position of the Board Position Label
3.9 Cabinet Number Labels, Board Name Labels and Cable Position Labels
Label each item with the corresponding label after installation is completed. Labelling cables is
important to avoid misconnection of cables after maintenance has been carried out.
The cable position labels indicate the board position and the position of the connector where the
plug is connected. Figure 3–3 gives the standard connector positions on all boards (position 1–4)
and two examples of the labeling. If more than one position is used by the plug, mark the plug with
the lower position used.
28 32 36 40 44 48 52 56 24
Board Position label
