Isolated Output Wiring Diagrams

Powerware

9170 User's Guide

LTM-1344 B Uncontrolled Copy

S 120/208 Input, 120/208 Output

S 127/220 Input, 127/220 Output

(Voltages require the bypass switch to be BBM; contact your service representative for details.)

Split-phase

NOTE 1

NOTE 4

NOTE 2

NOTE 4

NOTE 2

NOTE 3

NOTE 4

NOTE 4 NOTE 9

NOTE 5

NOTE 7

NOTE 9

NOTE 6

NOTE 8

NOTE 10

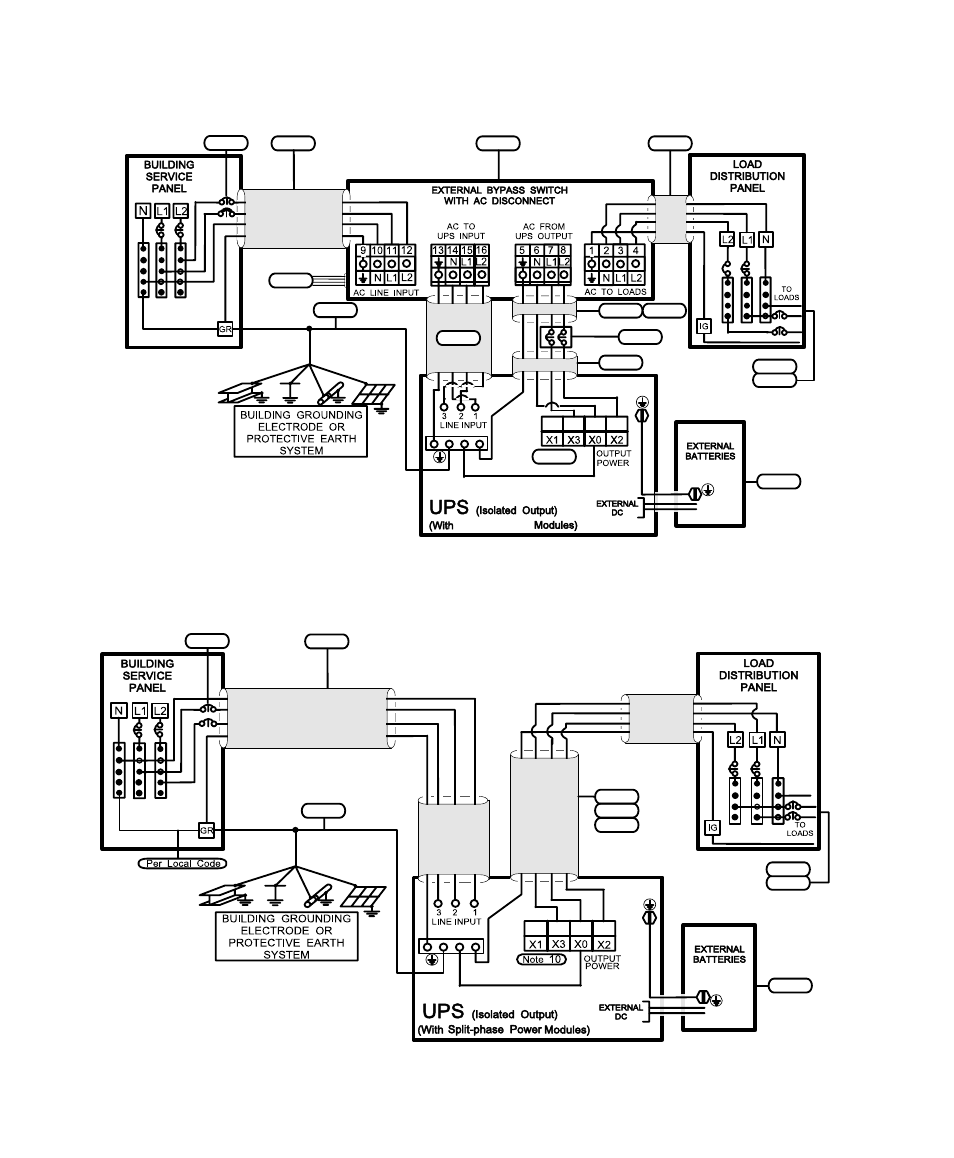

Figure 39. External Bypass Switch (L1, L2, N), Isolated Output for Derived 3-Phase Voltages

S 120/208 Input, 120/208 Output

S 127/220 Input, 127/220 Output

NOTE 1

NOTE 4

NOTE 3

NOTE 4

NOTE 7

NOTE 9

NOTE 8

NOTE 9

NOTE 6

Figure 40. No External Bypass (L1, L2, N), Isolated Output for Derived 3-Phase Voltages
