Battery Cabinet Installation
21
Powerware
®
9170 User's Guide
S
LTM-1344 B Uncontrolled Copy
Ĉ
+

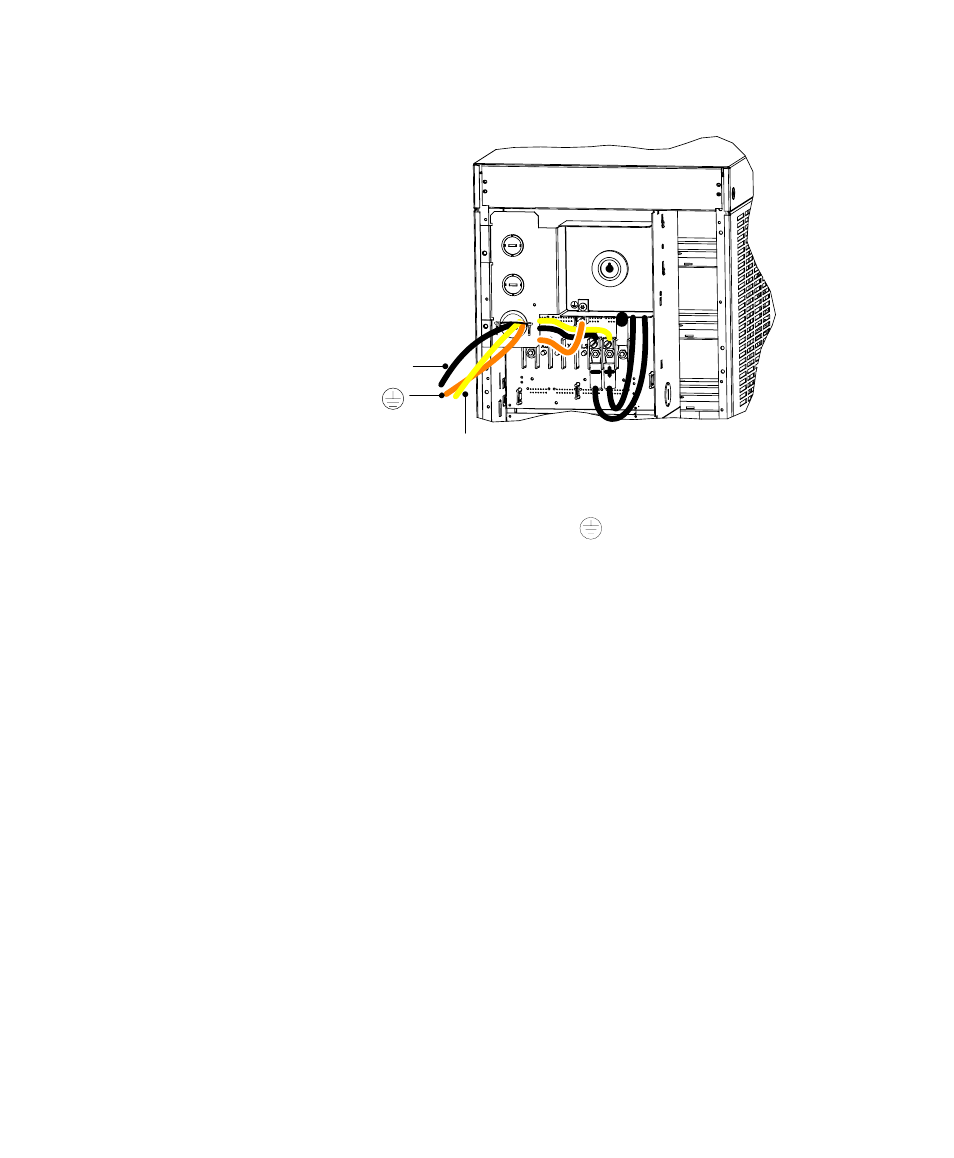

Figure 17. Battery Cable Installed in Battery Cabinet
17. Secure the
+
, the
Ĉ
, and the conductors to the proper
compression lugs on the battery cabinet backplane as shown in
Figure 17. Torque all three compression lugs to 75ć85 in lb
(8.5ć9.6 Nm).
18. If an additional battery cabinet will be connected to the first, in
a daisy-chain configuration, use another external battery
cabinet cable assembly for the connections between the battery
cabinets.
19. Locate the daisy-chained cable on the rear of the first battery
cabinet in the section below the location of the first cable
assembly. Follow this procedure for connecting any additional
daisy-chained battery cabinets.
20. Install the remaining cabinet rear panels using the original
screws.
21. If your UPS is a hardwired unit, continue to Electrical
Installation" on page 23. If you have a plug-receptacle unit,
skip to UPS Startup" on page 49.
