Electrical Installation
25 Powerware ® 9170 User's Guide S LTM-1344 B Uncontrolled Copy
If a bypass switch is not used, the UPS input may be hardwired through
conduit to a main power source circuit breaker, and the UPS output may
either be hardwired to a circuit breaker in a distribution panel (as shown
in Figure 19) or supplied to loads through receptacles on the back of the
UPS. Without a bypass switch, power to the load cannot be maintained
if the UPS is taken completely offline.
Building
Service
Panel
Load
Distribution
Panel
User-supplied
(If Required)
External Batteries
(Optional)

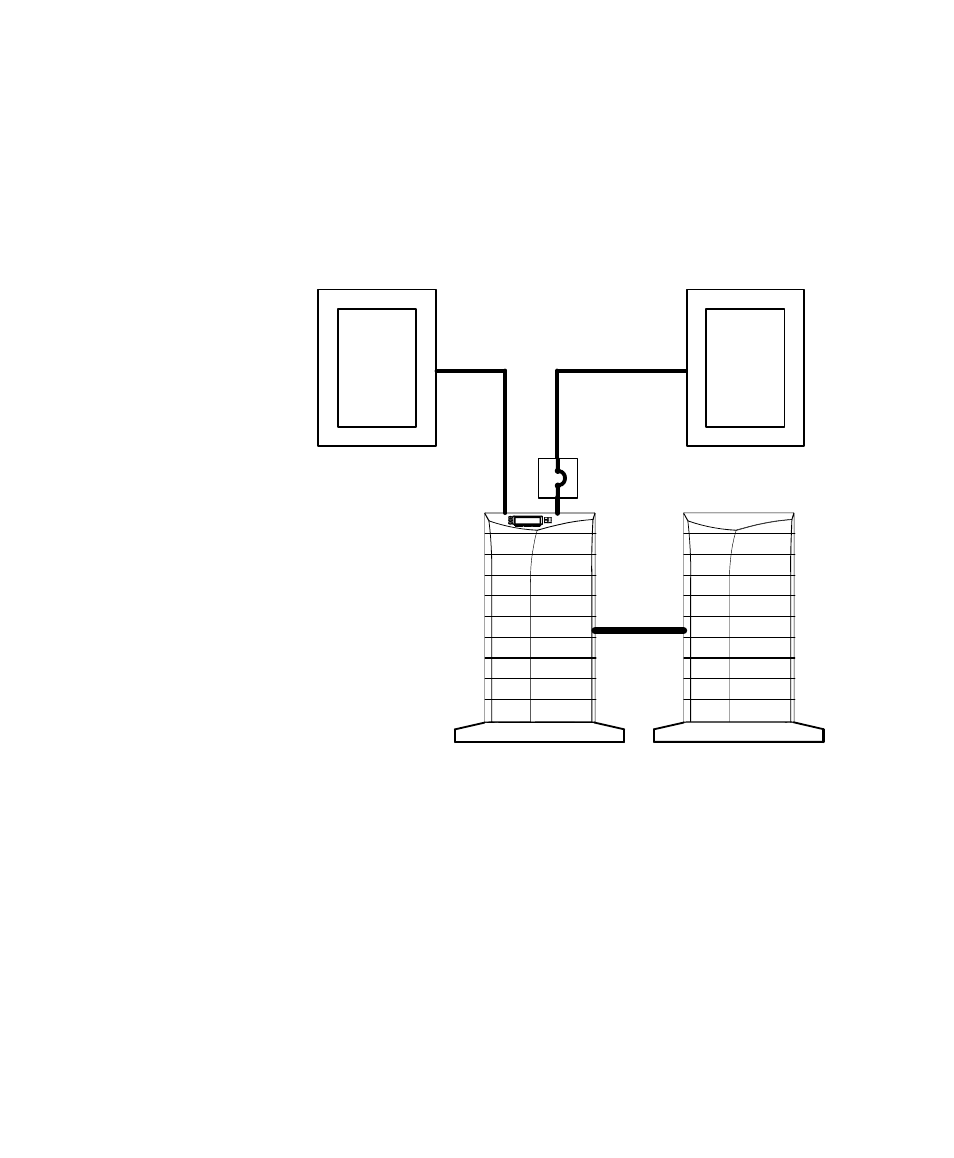

Figure 19. Typical Installation without a Bypass Switch
