Installation Setup
10 Powerware ® 9170 User's Guide S LTM-1344 B Uncontrolled Copy
NOTE If the floor is uneven and the cabinet is tilted or unstable, you may need to
place a thin steel plate under a corner. Do not use the caster bolts to level the
cabinet.
7. If you are installing an external battery cabinet, continue to
Battery Cabinet Installation" on page 17.
If you do not have an external battery cabinet, continue to UPS
Startup" on page 49 for plug-receptacle units or to Electrical
Installation" on page 23 for hardwired units.
Caster Cart Installation
An optional caster cart (ASY-0527) is available for 3- and 6-slot cabinets
for increased mobility of the UPS (see Figure 7).
NOTE The UPS cabinet is heavy. This procedure requires two people to lift and
position the cabinet onto the caster cart. Lift the cabinet using four lifting straps
shipped with the cabinet; do not attempt to lift the cabinet by the module shelves or
other convenient edges or panels.
Caster Cart

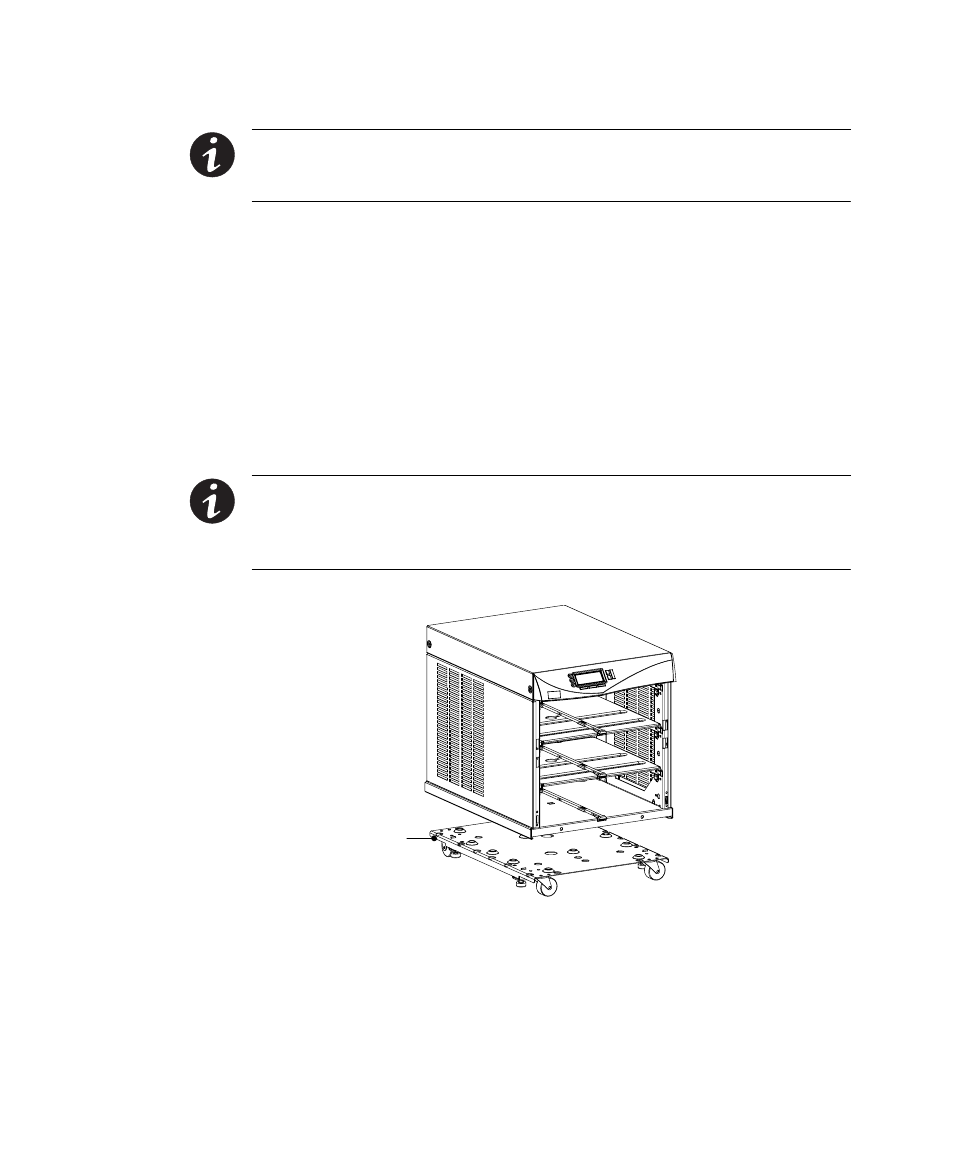

Figure 7. Three-Slot Cabinet Being Lowered onto Caster Cart
The caster cart, shipped separately from the UPS cabinet, must be placed
under the cabinet before installing power and battery modules, and
before plugging the UPS into the intended power outlet.
