Printronix MVP Series User Manual
Page 30

Installation
2–8
Assembling the Paper Tray
To assemble the paper tray refer to Figure 2–1, and perform the following
steps.
1.
Make sure the paper tray kit contains the following items:
•
1paper tray
•
1 ground cable
•
1 clamp
•
1 screw
•
1 nut
2.
Snap the clamp over the bottom right rim of the paper tray.
3.
Slip the screw through the clamp and position the ground cable ring
onto the screw.
4.
Thread the nut onto the screw and tighten.
ring
clamp
ground cable

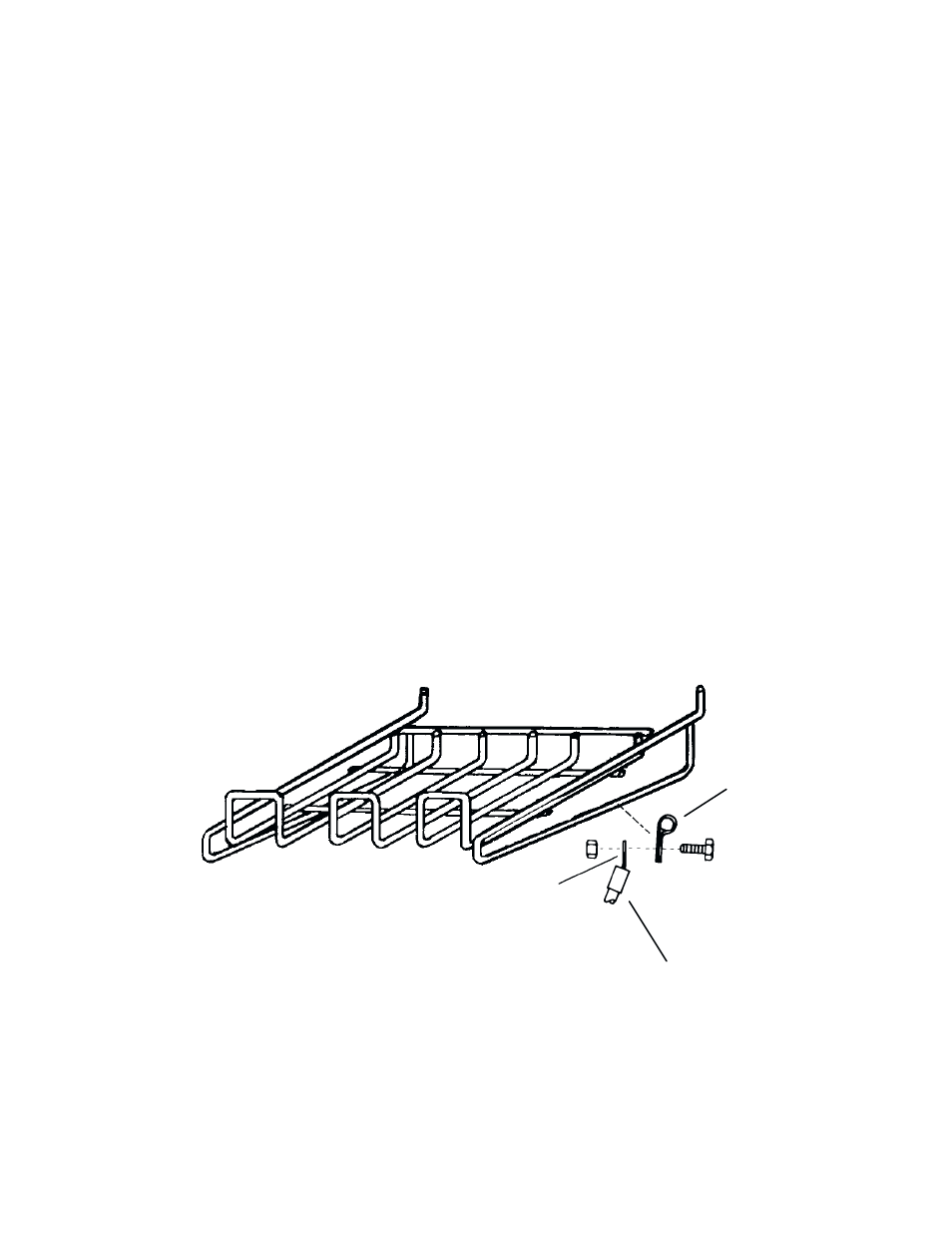

Figure 2–1. Assembling the Paper Tray
