MAINTENANCE WORK ON CHASSIS AND ENGINE
96
Info
The main fuse protects all power-consuming components of the vehicle. It is located in the housing of the electric starter relay next
to the battery.
ದ
Switch off all power-consuming components and switch off the engine.
ದ
Remove the seat. (
P. 89)
ದ
Reinstall the fuel tank. (
P. 90)

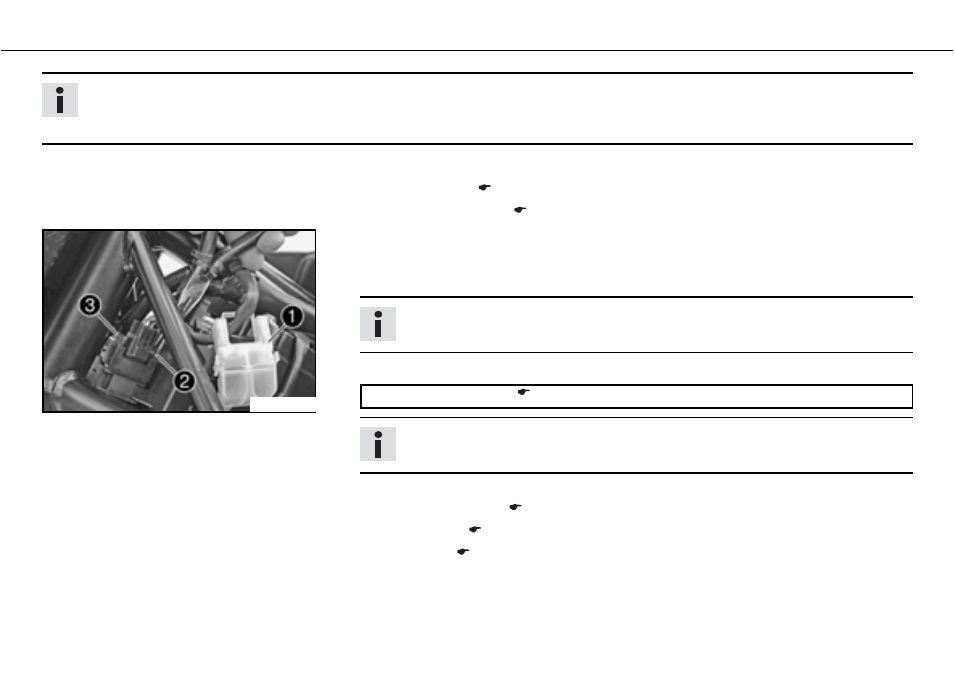

100152-10
ದ
Remove the protection cover
b
.
ದ
Remove a defective main fuse
b
with a needle nose plier.
ದ
Check parts for damage and wear. Replace damaged or worn parts.
Info
A reserve fuse
b
is located in the starter relay.
ದ
Fit a new main fuse.
Fuse
b(58011109130) (
P. 143)
Info
If the new fuse burns out, contact an authorized KTM workshop.
ದ
Replace the protection cover.
ದ
Position the fuel tank. (
P. 91)
ದ
Mount the seat. (
P. 89)
ದ
Set the clock. (
P. 28)
