Amaintenance work on chassis and engine – KTM Supermoto 690 User Manual
Page 71

B
1 2 3
16 17 18
A
MAINTENANCE WORK ON CHASSIS AND ENGINE
69

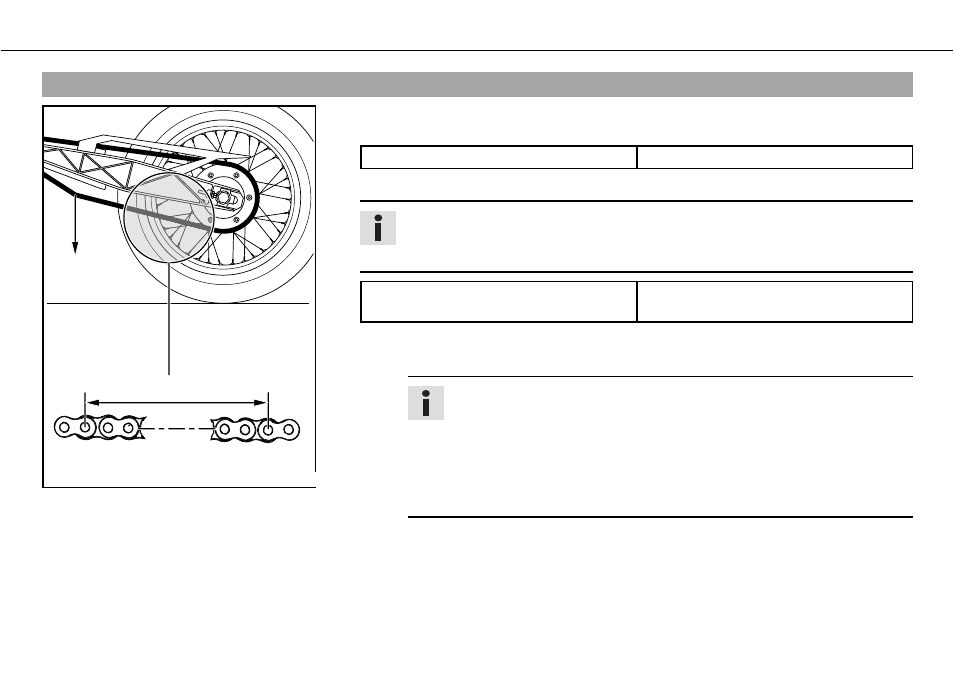

Checking chain wear
100133-10
ದ
Shift into neutral, pull the lower chain section with the specified weight
b
.
Specification
Weight of chain wear measurement
15
bkg (33blb.)
ದ
Measure the distance
b
of 18 chain links in the lower chain section.
Info
Chain wear is not always even, so you should repeat this measurement at differ-
ent chain positions.
Maximum distance
b
at the longest
chain section
272
bmm (10.71bin)
»
If the distance
b
is greater than the specified measurement:
ದ
Have the chain changed.
Info
When the chain is replaced, the rear sprocket and engine sprocket
should also be changed.
New chains wear out faster on old, worn sprockets.
For safety reasons, the chain has no chain joint. Always have the chain
changed in an authorized KTM workshop, where the necessary tool is
available.
