MAINTENANCE WORK ON CHASSIS AND ENGINE
56
0$,17(1$1&( :25. 21 &+$66,6 $1' (1*,1(

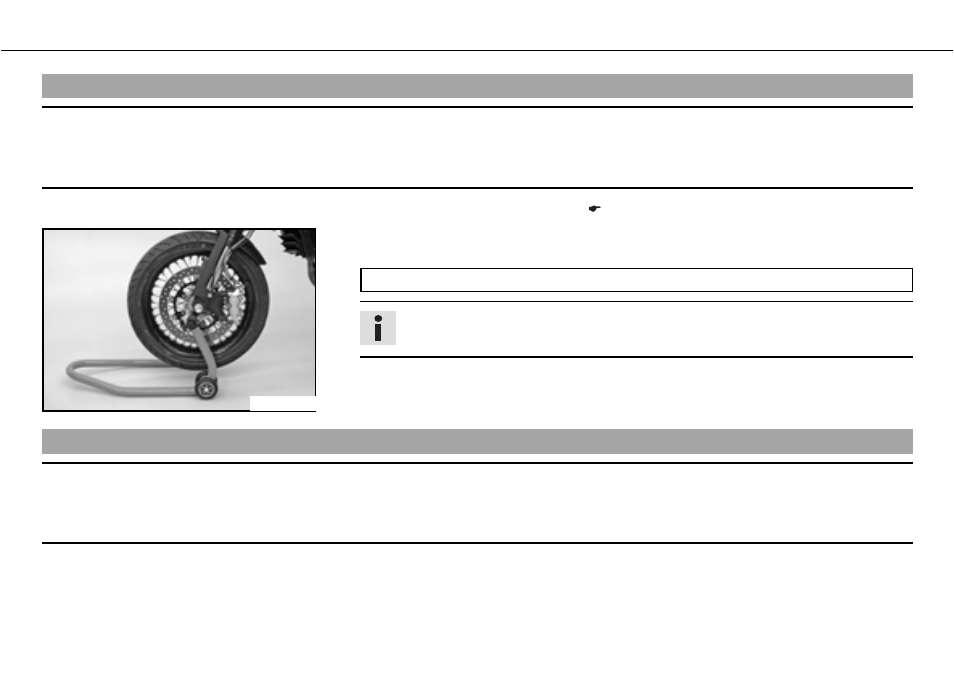

Jacking up front of motorcycle
Note
Danger of damage
ಘDanger of damage by the vehicle running away or falling over.
ದ
Always place the vehicle on a firm and even surface.
ದ
Jack up the rear of the motorcycle. (
P. 57)
500096-01
ದ
Move the handlebar to the straight-ahead position. Align the work stand to the front
with the adapters to the fork legs.
Work stand front (61029055300)
Info
Always jack up the rear of the motorcycle first.
ದ
Jack up the front of the motorcycle.
Taking front from work stand
Note
Danger of damage
ಘDanger of damage by the vehicle running away or falling over.
ದ
Always place the vehicle on a firm and even surface.
ದ
Secure the motorcycle against falling over.
ದ
Remove the work stand at the front.
