MAINTENANCE WORK ON CHASSIS AND ENGINE
59
ದ
Turn back counterclockwise the number of clicks corresponding to the fork type.
Specification
Compression damping
Comfort
20
bclicks
Standard
15
bclicks
Sport
10
bclicks
full payload
10
bclicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
Adjusting rebound damping of fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
100123-10
ದ

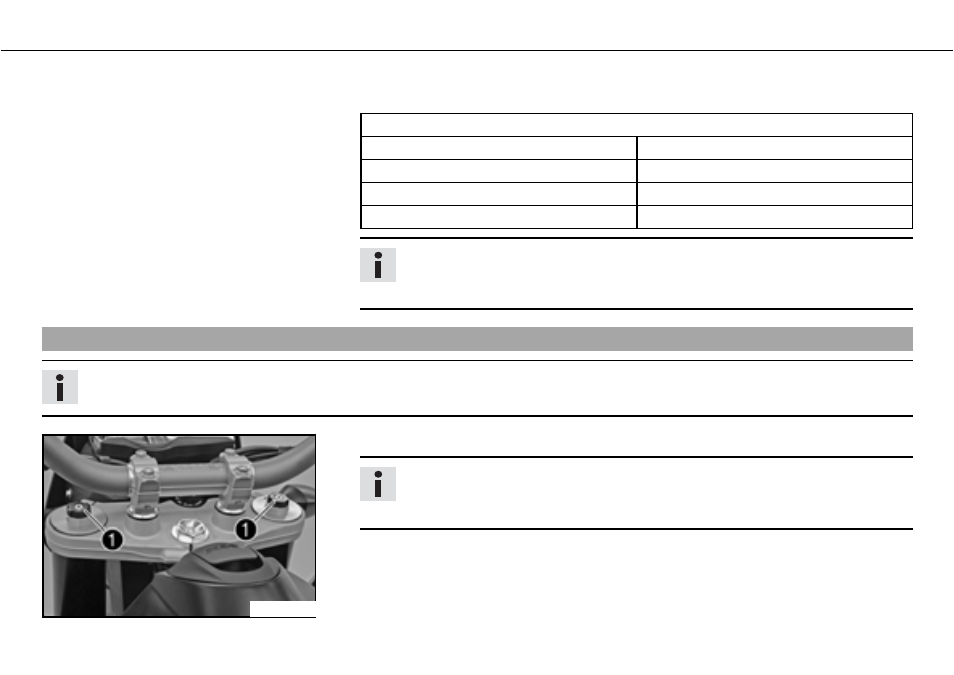

Turn adjusting screws
b
clockwise until they stop.
Info
The adjusting screws are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
