MAINTENANCE WORK ON CHASSIS AND ENGINE
82

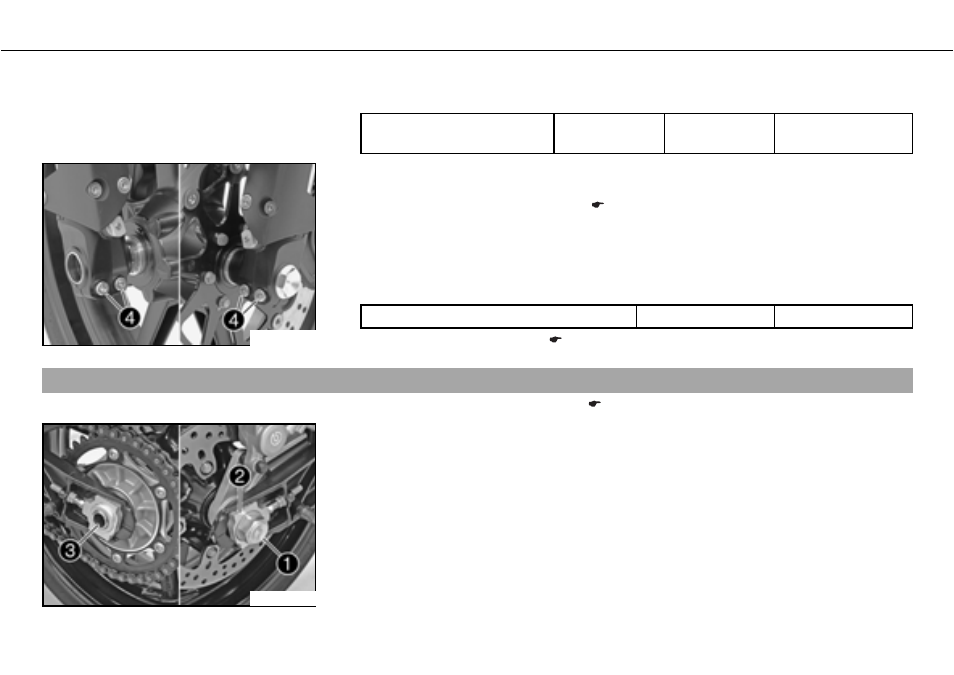

ದ Position the spacing sleeves b . Mount and tighten screws b .
Specification
Screw, front brake caliper M10x1.25 45 bNm
(33.2 blbfbft)
Loctite ® 243™
100168-10
ದ Operate the hand brake lever several times until the brake pads are lying correctly on
the brake disc.
ದ Take the front from the work stand. ( P. 56)
ದ Pull the front wheel brake and push down hard on the fork several times to align the
fork legs.
ದ Fully tighten screw b .
Specification
Screw, fork stub M8 15 bNm (11.1blbfbft)
ದ Taking rear from work stand. ( P. 57)
Removing rear wheel b
x
ದ Jack up the rear of the motorcycle. ( P. 57)
100144-10
ದ Remove nut b . Remove chain adjuster b . Holding the rear wheel, withdraw the wheel
spindle b .
ದ Push the rear wheel forwards as far as possible and take the chain off the rear sprocket.
