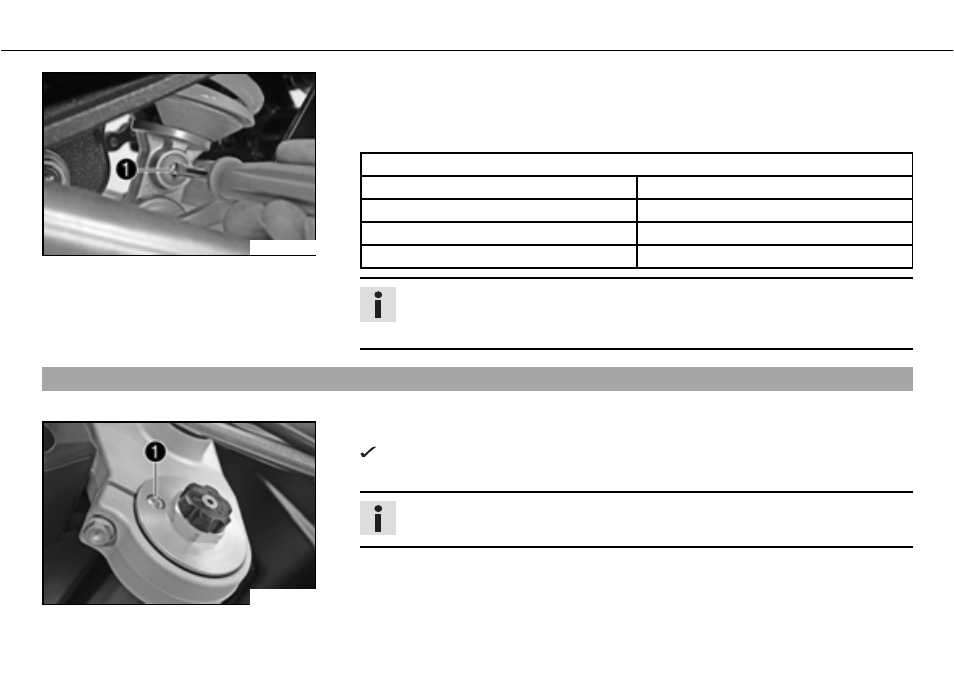

MAINTENANCE WORK ON CHASSIS AND ENGINE
63
100127-10
ದ
Turn the adjusting screw
b
clockwise until it stops.
ದ
Turn back counterclockwise the number of clicks corresponding to the shock absorber
type.
Specification
Rebound damping
Comfort
20
bclicks
Standard
15
bclicks
Sport
10
bclicks
full payload
10
bclicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
Bleeding fork legs
ದ
Lean the motorcycle on the side stand.
100124-10
ದ
Remove bleeder screws
b
briefly.
Any excess pressure escapes from the interior of the fork.
ದ
Mount and tighten bleeder screws.
Info
Carry out this action on both fork legs.
