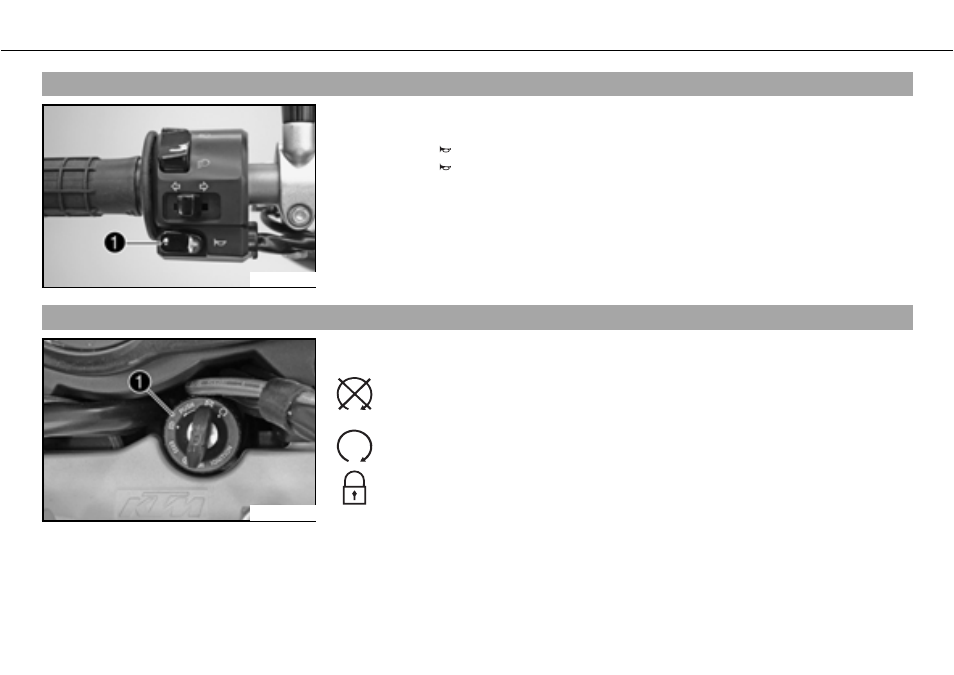

OPERATING ELEMENTS
22
Horn
500021-11
The horn button
b
is fitted on the left side of the handlebar.
Possible states
•
Horn button
b
in neutral position
•
Horn button
b
pressed
ದbThe horn is operated in this position.
Ignition/steering lock
500019-01
The ignition/steering lock
b
is located in front of the upper triple clamp.
Possible states
Ignition off
ದbIn this position, the ignition circuit is interrupted, a running
engine stops, and a non-running engine will not start. The ignition key can
be removed.
Ignition on
ದbIn this position, the ignition circuit is closed, and the engine
can be started.
Steering locked
ದbIn this position, the ignition circuit is interrupted and the
steering locked. The ignition key can be removed.
