MAINTENANCE WORK ON CHASSIS AND ENGINE
61
100125-10
ದ

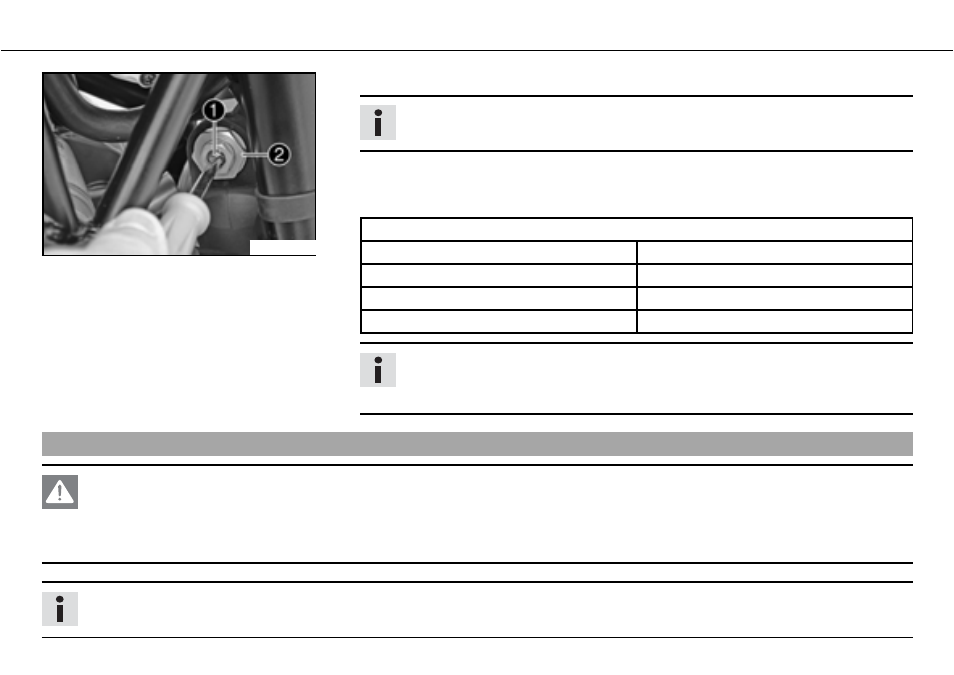

Turn the adjusting screw
b
clockwise with a screwdriver until it stops.
Info
Do not loosen nut
b
!
ದ
Turn back counterclockwise the number of clicks corresponding to the shock absorber
type.
Specification
Compression damping, low-speed
Comfort
20
bclicks
Standard
15
bclicks
Sport
10
bclicks
full payload
10
bclicks
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
Adjusting high-speed compression damping of the shock absorber (690
bSUPERMOTObR)
Danger
Danger of accidents
ಘThe shock absorber is under high pressure.
ದ
The shock absorber is filled with highly compressed nitrogen, so never dismantle the shock absorber or carry out any mainte-
nance on it yourself.
Info
The high-speed setting can be seen during the fast compression of the shock absorber.
