MAINTENANCE WORK ON CHASSIS AND ENGINE
88
Checking spoke tension (690
bSUPERMOTO)
Warning
Danger of accidents
ಘUnstable riding behavior due to loose spokes.
ದ
If you ride with loose spokes, the spokes can break. Have the spoke tension corrected in an authorized KTM workshop.
Info
A loose spoke can cause wheel imbalance, which leads to more loose spokes in a short time.
If the spokes are too tight, they can break due to local overload.
Check the spoke tension regularly, especially on a new motorcycle.
100171-10
ದ

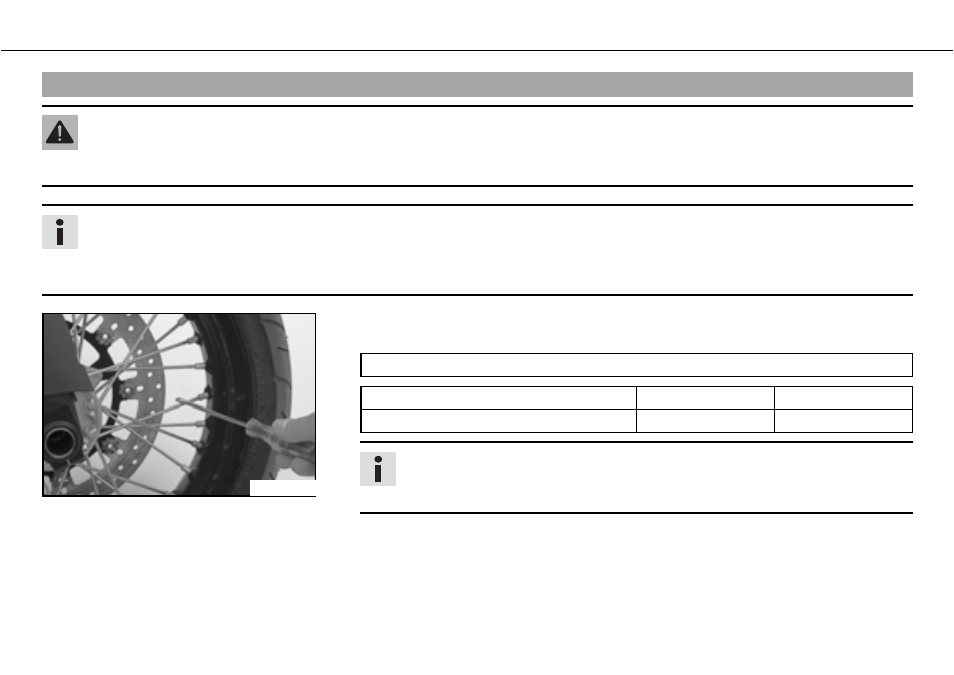

To check spoke tension, tap each spoke with a screwdriver.
Specification
You should hear a high note.
Spoke nipple, front wheel
M4,5
5
bNm (3.7blbfbft)
Spoke nipple, rear wheel
M5
5
bNm (3.7blbfbft)
Info
If you hear different tone frequencies from different spokes, this is an indication
of different spoke tensions.
