MAINTENANCE WORK ON CHASSIS AND ENGINE
120

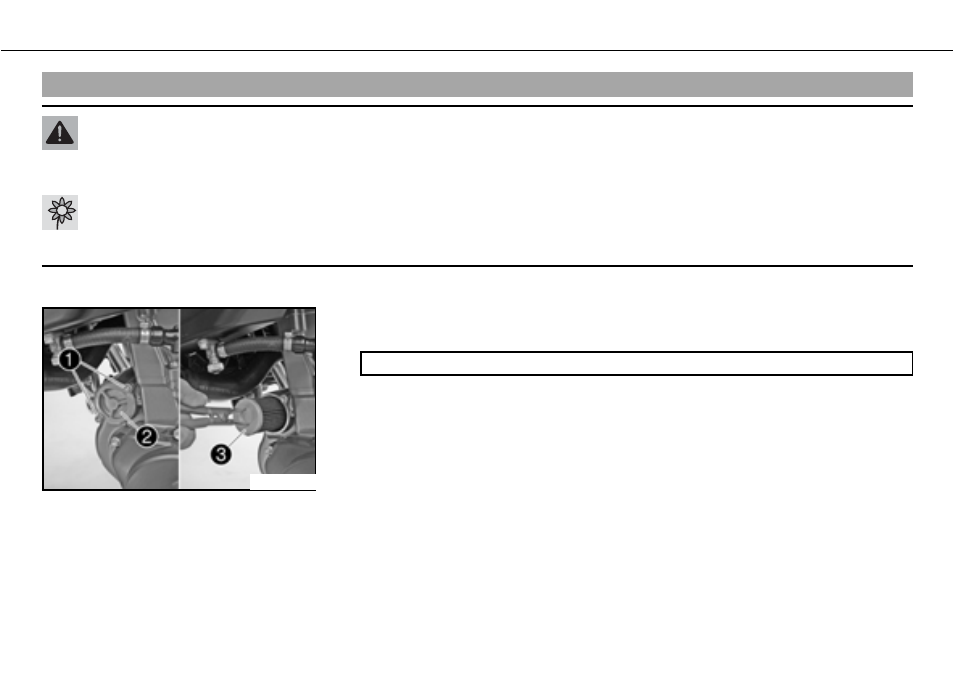

Removing the oil filter
b
x
Warning
Danger of scalding
ಘEngine oil and gear oil get very hot when the motocycle is driven.
ದ
Wear suitable protective clothing and gloves. If you scald yourself, hold the affected area under cold water immediately.
Warning
Environmental hazard
ಘProblem materials cause environmental damage.
ದ
Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
ದ
Place a suitable container under the engine.
700103-01
ದ
Remove screws
b
. Remove oil filter cover
b
with O-ring.
ದ
Pull the oil filter insert
b
out of the oil filter casing.
Circlip pliers reverse (51012011000)
