Maintenance work on chassis and engine – KTM Supermoto 690 User Manual
Page 64
MAINTENANCE WORK ON CHASSIS AND ENGINE
62
100126-10
ದ

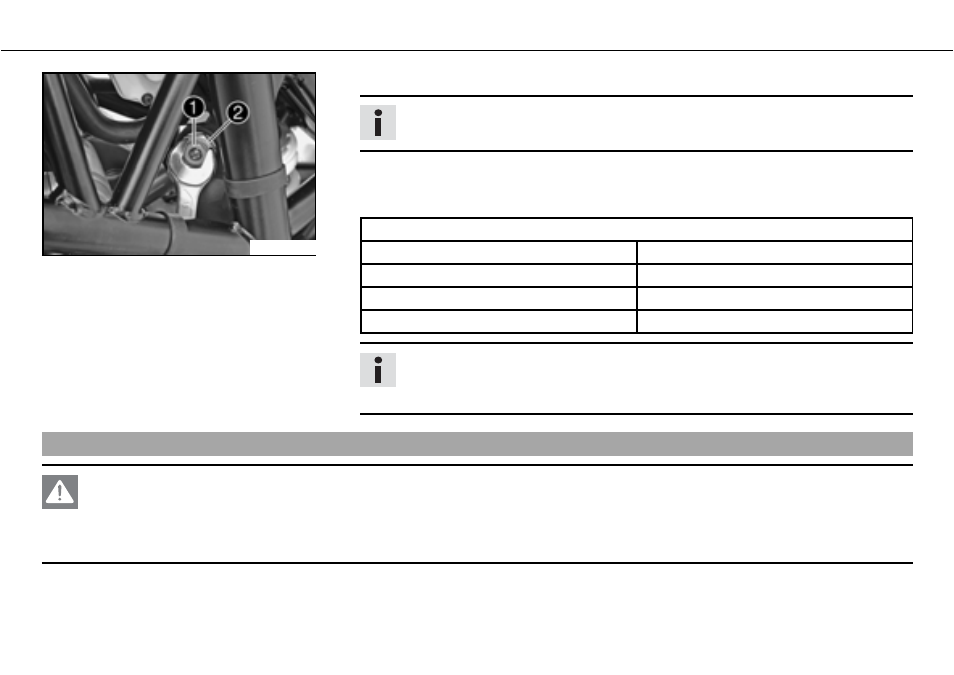

Turn the adjusting screw
b
clockwise with an open-ended spanner until it stops.
Info
Do not loosen nut
b
!
ದ
Turn back counterclockwise the number of turns corresponding to the shock absorber
type.
Specification
Compression damping, high-speed
Comfort
2
bturns
Standard
1.5
bturns
Sport
1
bturn
full payload
1
bturn
Info
Turn clockwise to increase damping, turn counterclockwise to reduce suspension
damping.
Adjusting rebound damping of the shock absorber
Danger
Danger of accidents
ಘThe shock absorber is under high pressure.
ದ
The shock absorber is filled with highly compressed nitrogen, so never dismantle the shock absorber or carry out any mainte-
nance on it yourself.
