Maintenance work on chassis and engine – KTM Supermoto 690 User Manual
Page 100
MAINTENANCE WORK ON CHASSIS AND ENGINE
98
100154-10
ದ

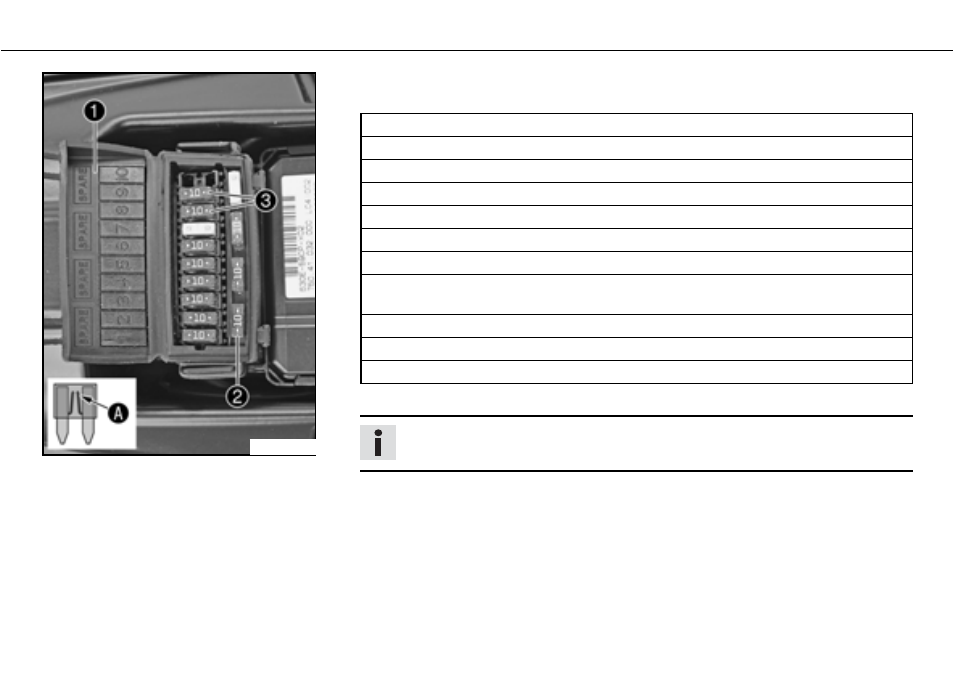

Remove defective fuse.
Specification
Fuse
b1 - 10A - ignition, combination instrument, alarm system (optional)
Fuse
b2 - 10A - clock, ignition (EFI control unit)
Fuse
b3 - 10A - throttle valve control unit
Fuse
b4 - 10A - fuel pump
Fuse
b5 - 10A - radiator fan
Fuse
b6 - 10A - horn, brake light, flasher light, alarm system (optional)
Fuse
b7 - 15A - high beam, low beam, parking light, tail light, license plate lamp
Fuse
b8 - 10A - for supplementary equipment (accessories connected with ignition
switch)
Fuse
b9 - 10A - for supplementary equipment (standard accessories)
Fuse
b10 - not used
Fuse
bSPARE - 10A/15A - spare fuses
ದ
Check parts for damage and wear. Replace damaged or worn parts.
Info
A defective fuse is shown by a burned-out fuse wire
b
.
