MAINTENANCE WORK ON CHASSIS AND ENGINE
80
100139-10
ದ

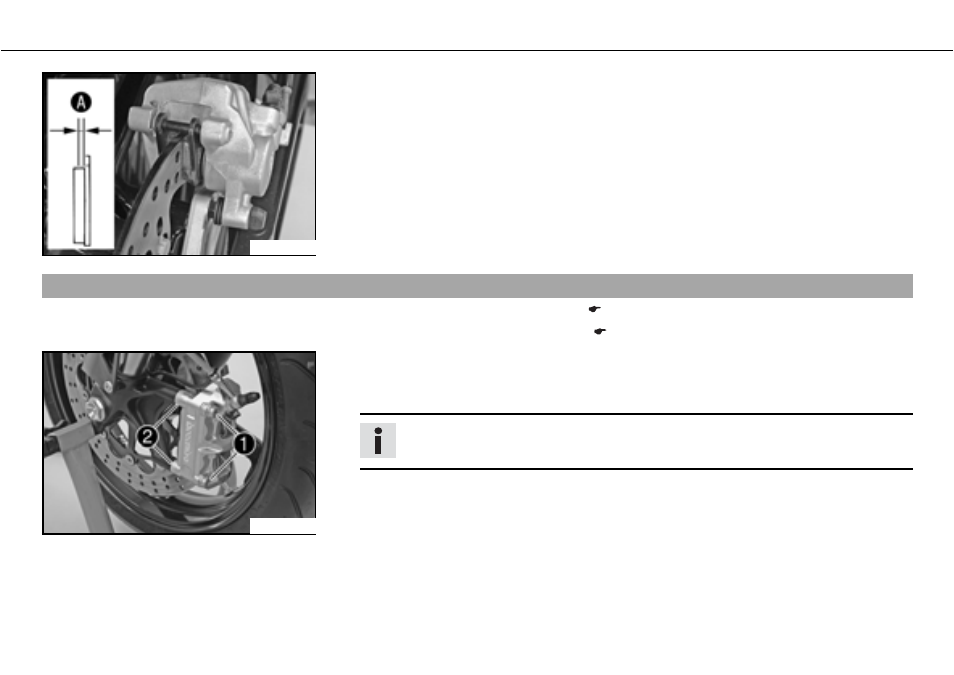

Check the brake linings for minimum thickness
b
.
»
Minimum thickness
b
:
ุb1bmm (ุb0.04bin)
If the minimum thickness is less than specified:
ದ
Worn brake linings should be replaced immediately in an authorized KTM work-
shop.
Removing front wheel
b
x
ದ
Jack up the rear of the motorcycle. (
P. 57)
ದ
Jack up the front of the motorcycle. (
P. 56)
100140-10
ದ
Remove screw
b
and spacing sleeve
b
.
ದ
Press back the brake linings with a light lateral tilting of the brake caliper on the brake
disc. Pull the brake caliper carefully back from the brake disc and hang it to one side.
Info
Do not pull the handbrake lever when the brake caliper is removed.
