MAINTENANCE WORK ON CHASSIS AND ENGINE
119
Info
Drain the engine oil only when the engine is warm.
ದ
Stand the motorcycle on its side stand on a horizontal surface.
700106-01
ದ
Place a suitable container under the engine.
ದ

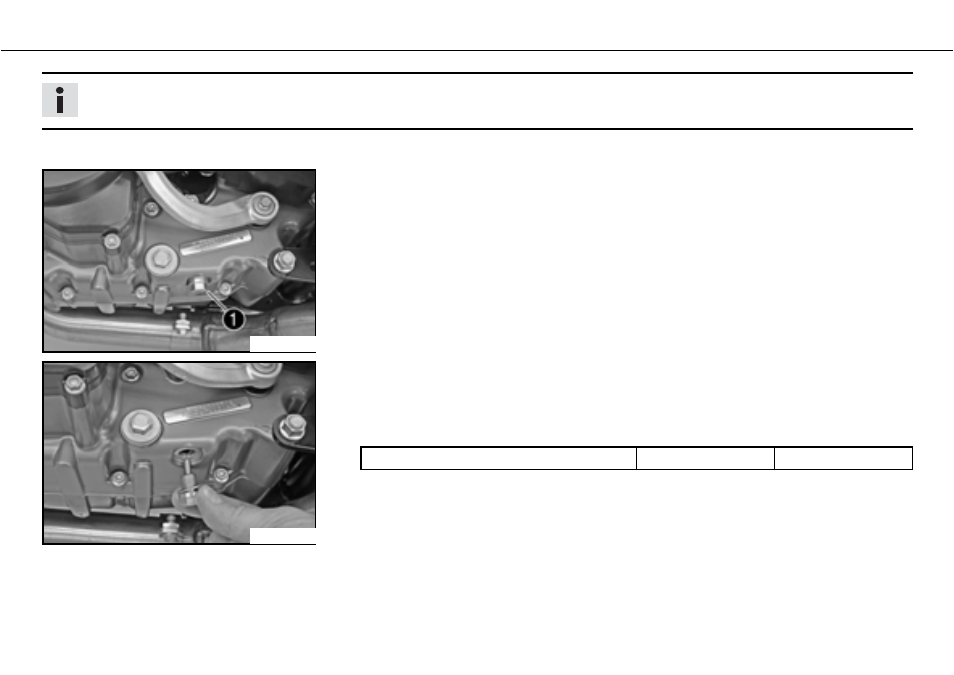

Remove the oil drain plug
b
with the magnet and seal ring.
ದ
Completely drain the engine oil.
700108-01
ದ
Thoroughly clean the oil drain plug with a magnet.
ದ
Check parts for damage and wear. Replace damaged or worn parts.
ದ
Refit the oil drain plug
bwith the magnet and seal ring and tighten it.
Specification
Oil drain plug with magnet
M12x1,5
20
bNm (14.8blbfbft)
