Maintenance work on chassis and engine – KTM Supermoto 690 User Manual
Page 59
MAINTENANCE WORK ON CHASSIS AND ENGINE
57

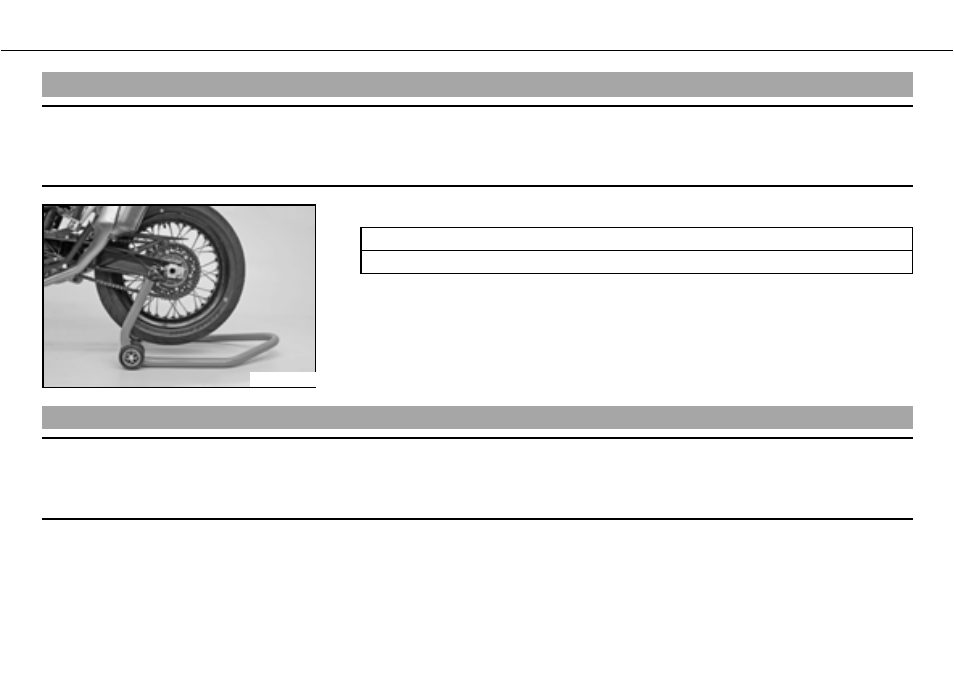

Jacking up rear of motorcycle
Note
Danger of damage
ಘDanger of damage by the vehicle running away or falling over.
ದ
Always place the vehicle on a firm and even surface.
500095-01
ದ
Insert the work stand adapter in the work stand and screw it into the link forks.
Work stand adapter (61029055110)
Work stand rear (61029055100)
ದ
Stand the motorcycle upright, align the work stand to the rear, and jack up the motorcy-
cle.
Take the rear from the work stand.
Note
Danger of damage
ಘDanger of damage by the vehicle running away or falling over.
ದ
Always place the vehicle on a firm and even surface.
ದ
Secure the motorcycle against falling over.
ದ
Remove the work stand from the rear and lean the vehicle on the side stand.
