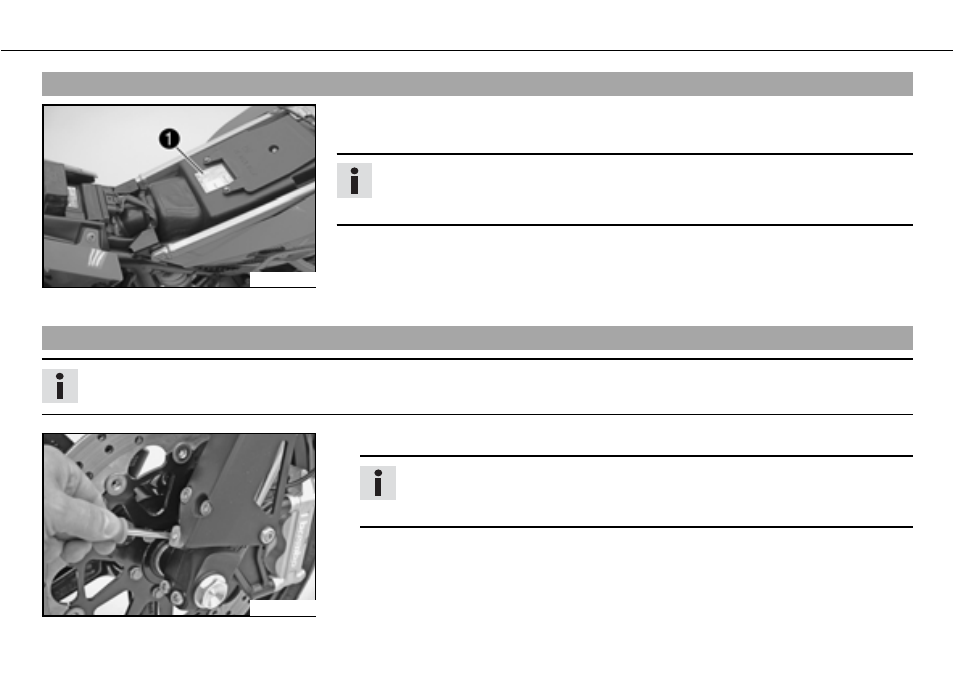

Fork/shock absorber
100177-10
The fork and the shock absorber offer many options of adapting the chassis to your riding
style and the payload.
Info
To help you adapt the vehicle, we have summarized our findings in Table b . You
can find the table on the air filter box under the seat.
These adjustments should be understood as a guideline and should always be the basis
of your own personal chassis adaptation. Do not change the adjustments at random or by
more than ± 40%, since otherwise the riding characteristics could deteriorate, particularly
at high speeds.
Adjusting compression damping of fork (690 bSUPERMOTObR)
Info
The hydraulic compression damping determines the fork suspension behavior.
100122-01
ದ Turn adjusting screws b clockwise until they stop.
Info
The adjusting screws b are located at the bottom end of the fork legs.
Make the same adjustment on both fork legs.
