Digital Multi Effects (DME)
Chapter 1
D
V
S-9000 Functions
DVS-9000/9000SF
3-704-674-01 (1)
Location XYZ
Moves the image on the x-axis, y-axis, or z-axis. The direction of movement
differs depending on whether you are manipulating the image in the source
coordinate space or the target coordinate space.

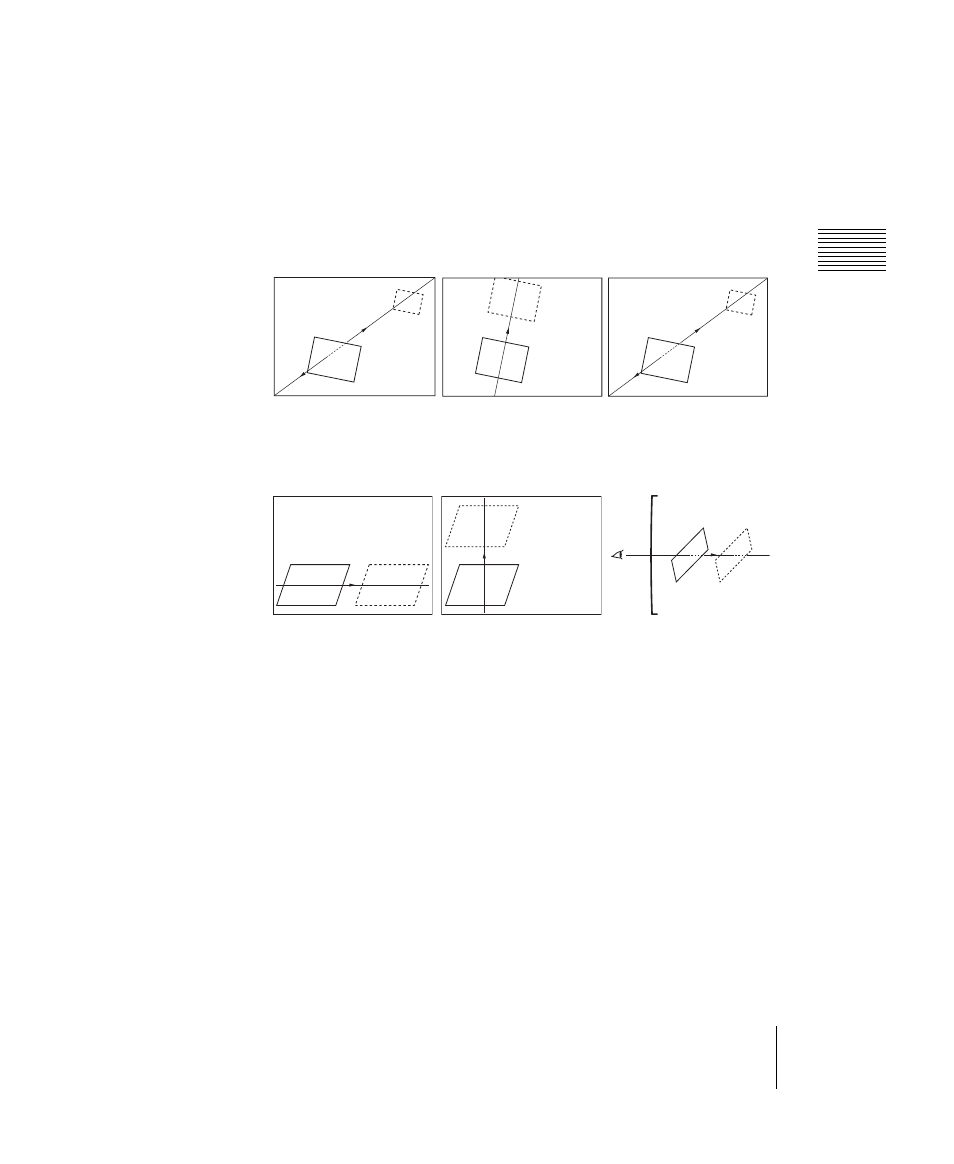

Image movement in the source coordinate space
Image movement in the target coordinate space
Rotation
Rotates the image on the x-axis, y-axis, or z-axis. The type of rotation differs
depending on whether you are manipulating the image in the source coordinate
space or the target coordinate space.
Movement on the x-axis Movement on the y-axis Movement on the z-axis
Movement on the x-axis Movement on the y-axis Movement on the z-axis
