Digital Multi Effects (DME)
Chapter 1
D
V
S-9000 Functions
DVS-9000/9000SF
3-704-674-01 (1)
If the Mix1 setting is 70 and the Mix2 setting is 40, the proportions of the
channels in the mixed portions in the illustration above are as shown in the
following table.
Brick
This effect creates a rectangular parallelepiped from 3 successive channels.
The Brick effect can combine Ch1, Ch2, and Ch3, or combine Ch2, Ch3, and
Ch4. The three images are displayed as shown below.

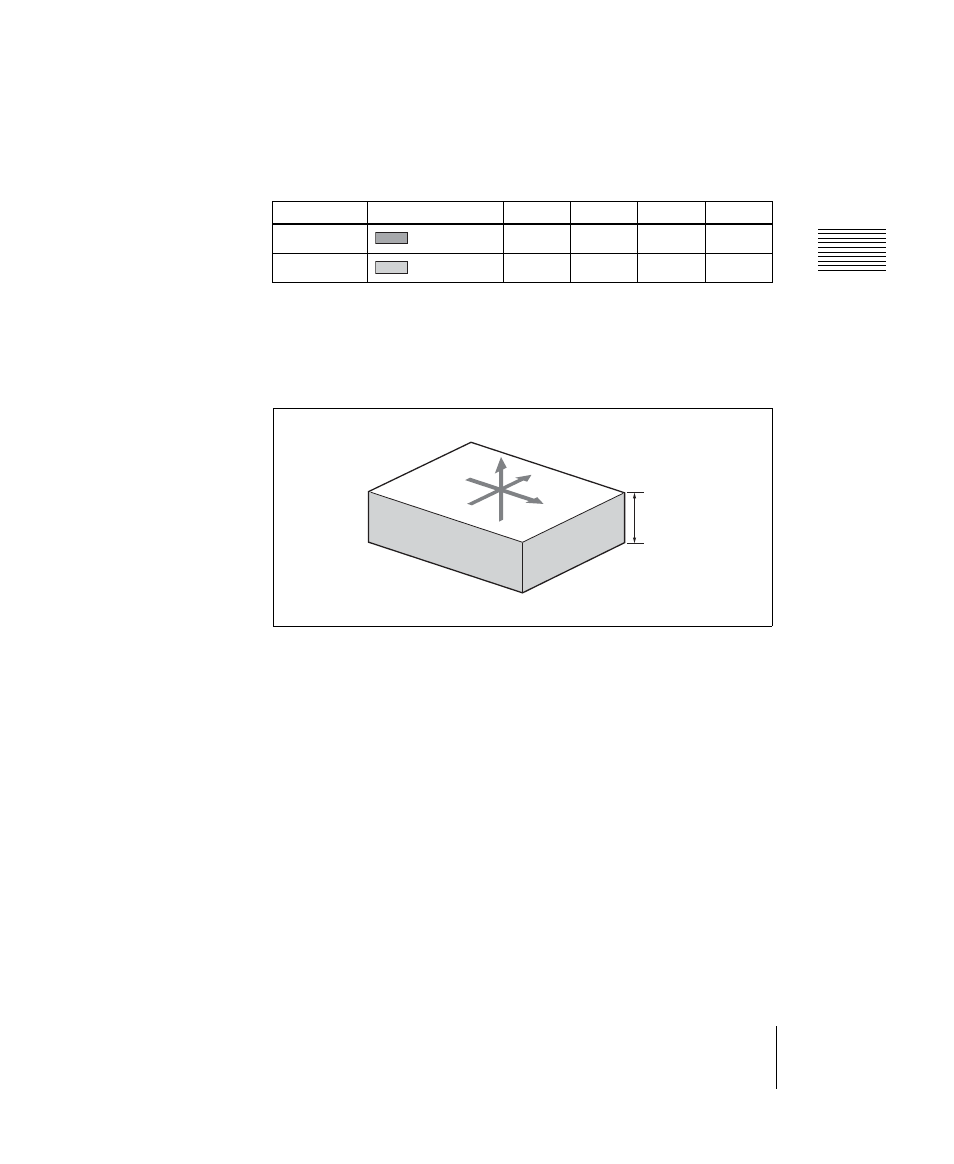

An example of the Brick effect
Combinations of Ch1, Ch2, and Ch3
Upper side: Ch1 image
Side V: Ch2 image
Side H: Ch3 image
Combinations of Ch2, Ch3, and Ch4
Upper side: Ch2 image
Side V: Ch3 image
Side H: Ch4 image
You can adjust the height of the brick, the overlap between the three images
and the way to insert the side images.
Shadow
This effect gives the image a shadow. The effect uses two successive channels.
You can adjust the position and density of the shadow with respect to the
Combination Indication in figure Ch1 Ch2 Ch3 Ch4
Ch1 and Ch2 30% 70% – –
Ch3 and Ch4 – – 60% 40%
X
Y
Z
Side V Side H
Height
Upper side
