Key Snapshots
Chapter 4
K
e
ys
DVS-9000/9000SF
3-704-674-01 (1)
Key Snapshots
Using the key snapshot function, you can instantaneously save all of the key
settings, except the key insertion state (on/off) and key priority, in dedicated
registers for later recall as required.
Key Snapshot Operations
Key snapshot operations are carried out in the downstream key control block
(MKS-8032 DSK Fader Module). Each keyer is provided with four dedicated
key snapshot registers.

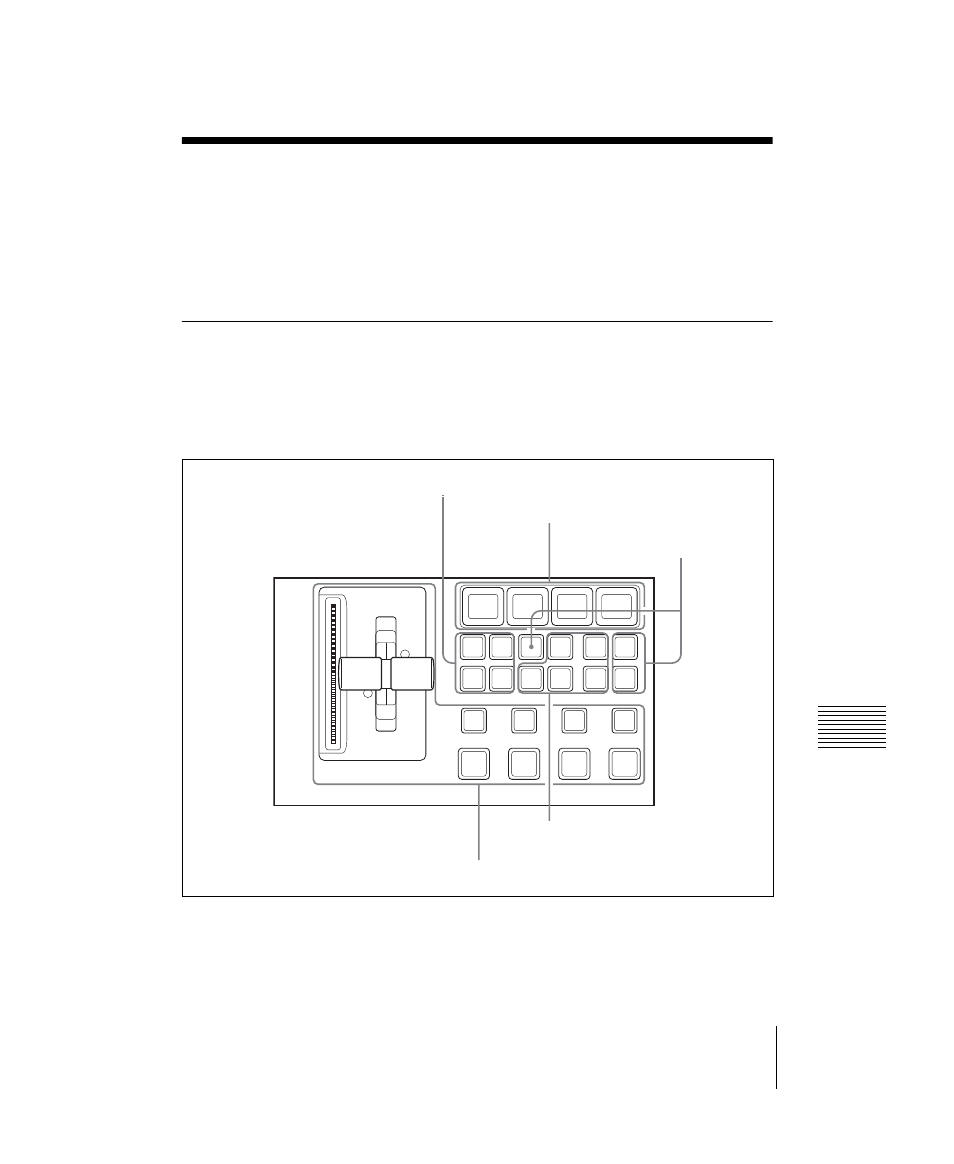

Downstream key control block (MKS-8032)
DSK1 DSK2 WIPE
DSK3 DSK4 SHIFT MIX
K-SS
CUT
DME
K-SS
STORE
DSK1
ON
DSK2
ON
DSK3
ON
DSK4
ON
TAKE TAKE TAKE TAKE
Key source name display/key snapshot buttons
Key delegation buttons
Key snapshot
setting buttons
Independent key transition execution section
Independent key transition type
selection buttons
