Downstream Key Control Block (MKS-8032 DSK Fader
Module, Option)
a Key delegation buttons
Press one of the [DSK1] to [DSK4] buttons
to delegate this control block to the
corresponding keyer.
b Independent key transition type
selection buttons
Press one of these buttons, turning it on, to
select the downstream key transition type.
MIX: Carry out a dissolve with the key
selected with the key delegation
buttons.
WIPE: Carry out a wipe with the key
selected with the key delegation
buttons.
DME: This switches the key selected with
the key delegation buttons, using a
DME wipe.
CUT: Instantaneously insert or delete the
key selected with the key delegation
buttons.
SHIFT: While this button is held down,
setting of the transition after the next
transition is enabled.
DSK1 DSK2 WIPE
DSK3 DSK4 SHIFT MIX
K-SS
CUT
DME
K-SS
STORE
DSK1
ON
DSK2
ON
DSK3
ON
DSK4
ON
TAKE TAKE TAKE TAKE

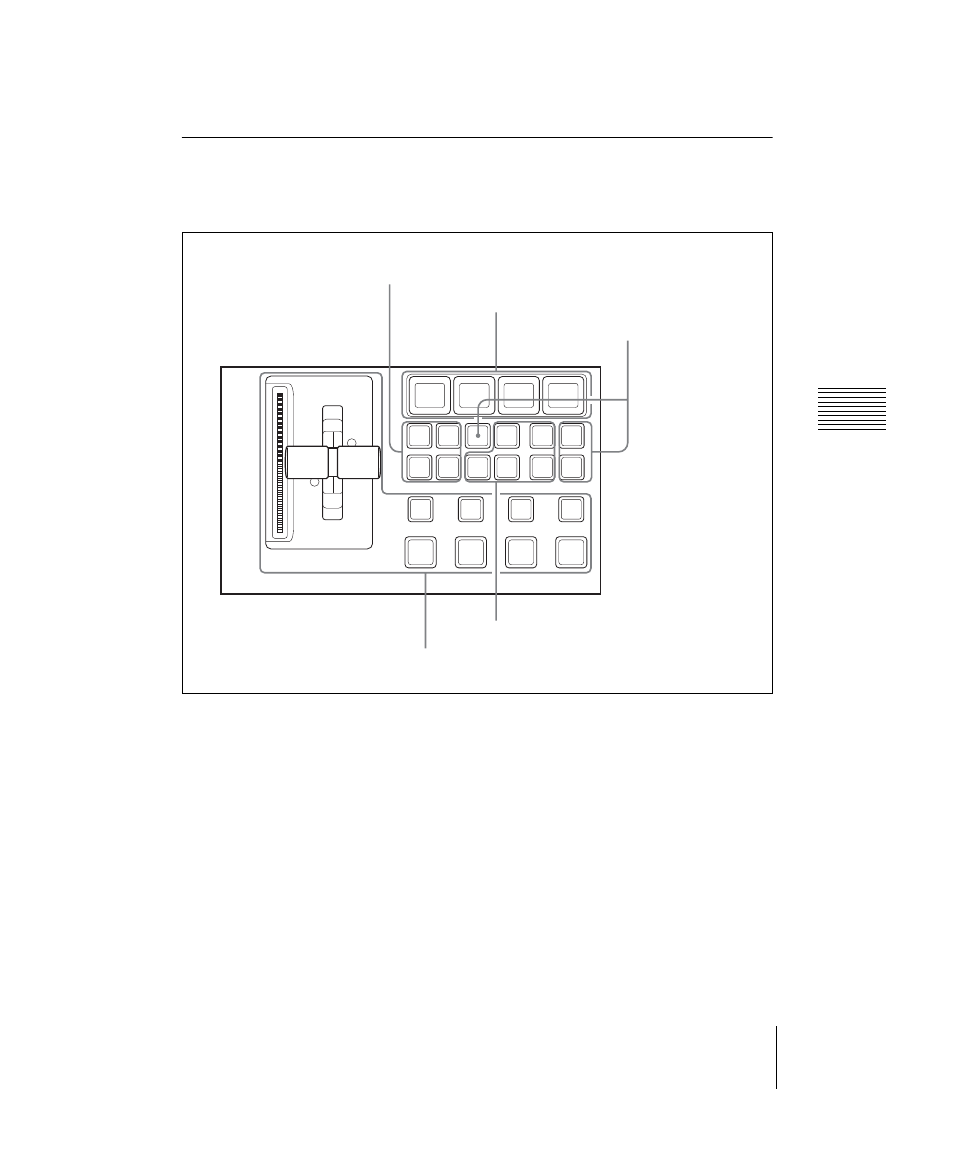

1 Key delegation buttons
5 Key source name display/key snapshot
buttons
4 Key snapshot setting
buttons
3 Independent key transition execution section
2 Independent key transition type
selection buttons
