Island Configuration Web Page
Introduction
The Island Configuration web page describes the configuration and operational
status (See Fault Detection, p. 132) of every module currently assembled on the
island bus. The modules are listed in order of their assembly starting with the
STB NIP 2212.
Sample Island
Configuration
Web Page

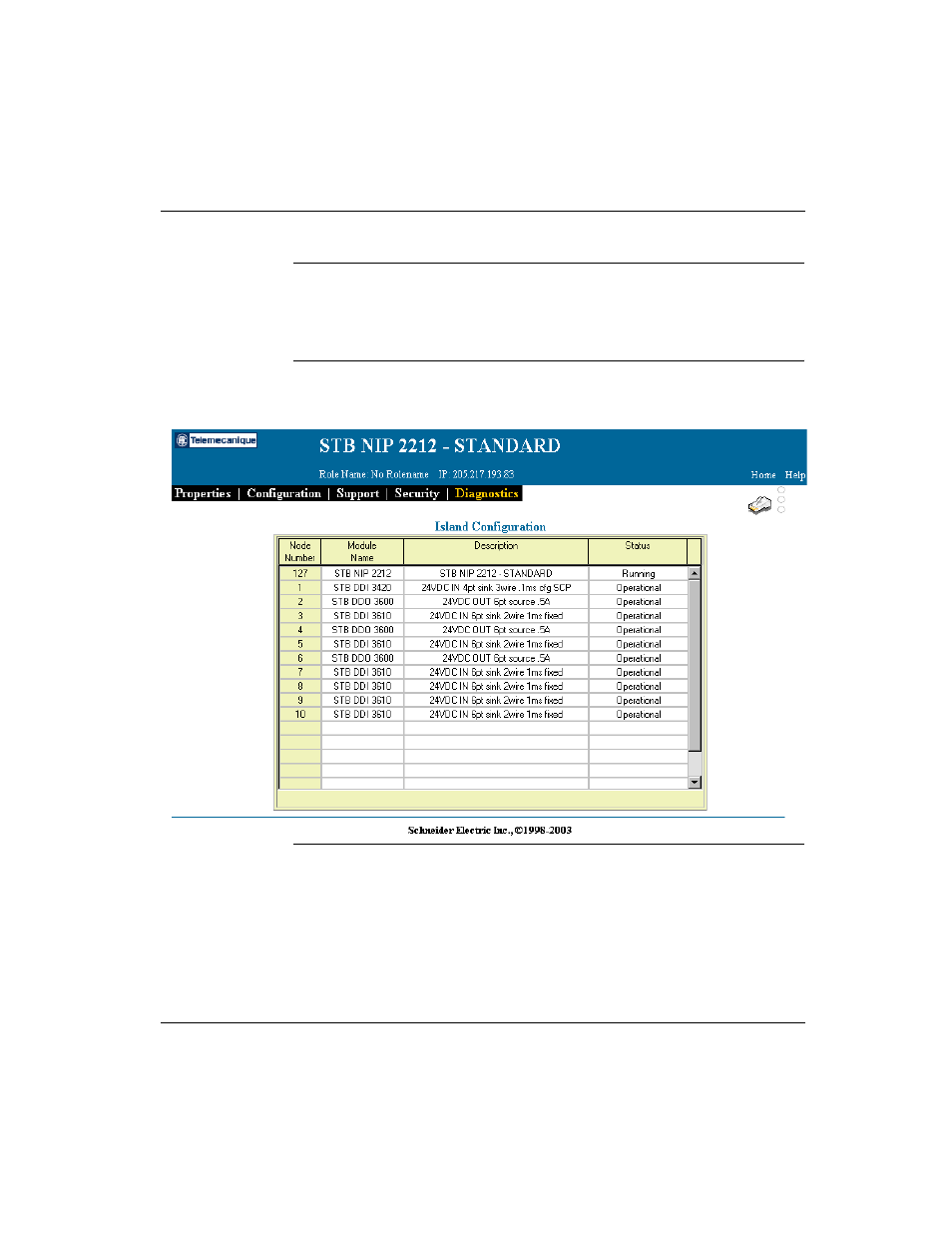

A sample Island Configuration web page appears in the following figure:
