A Data Exchange

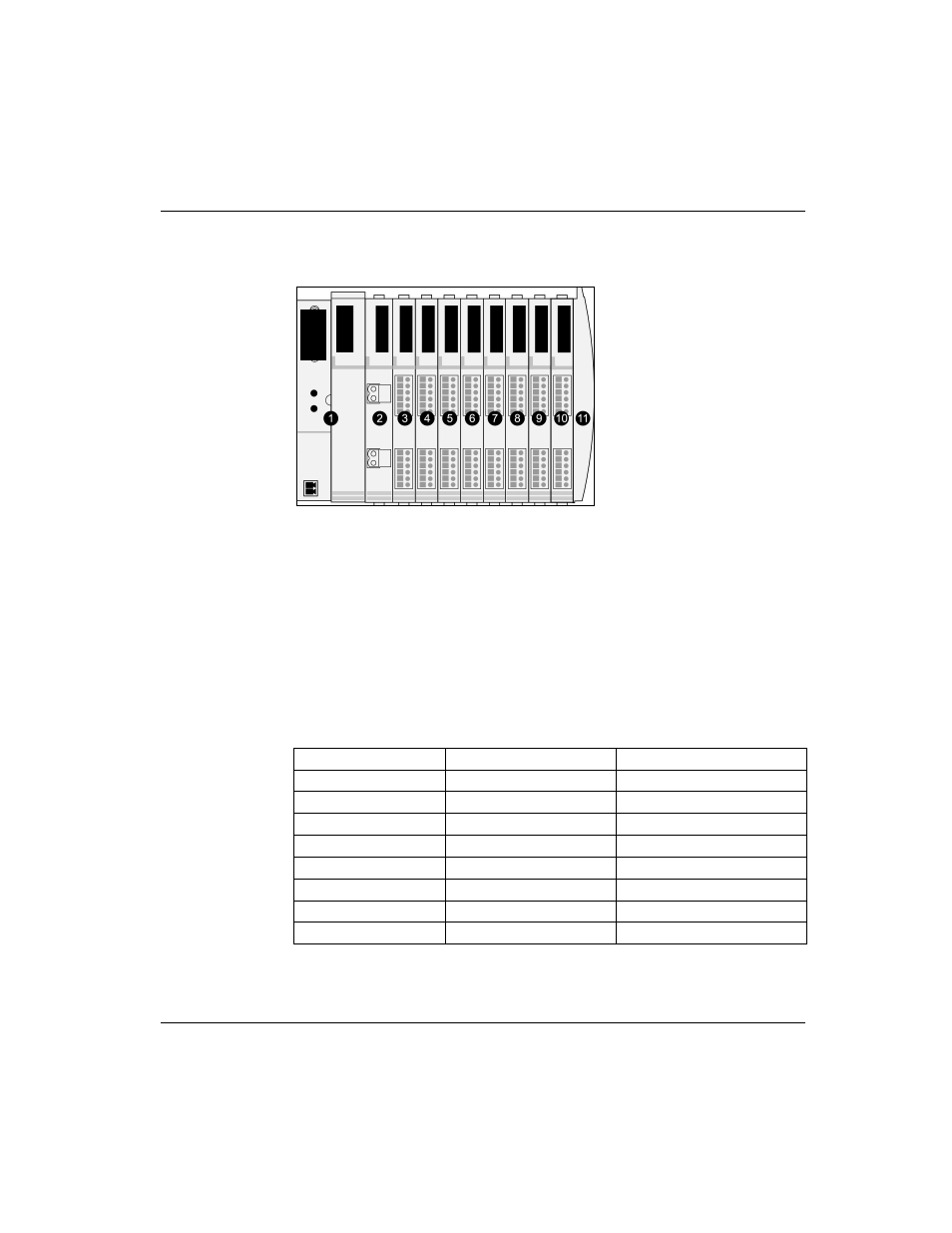

Example The example uses the sample island bus assembly, as illustrated in the following
figure. The sample island comprises the STB NIP 2212 NIM, eight Advantys STB I/
O modules, a 24 VDC PDM, and an STB XMP 1100 termination plate:
1 STB NIP 2212 network interface module
2 24 VDC power distribution module
3 STB DDI 3230 24 VDC two-channel digital input module
4 STB DDO 3200 24 VDC two-channel digital output module
5 STB DDI 3420 24 VDC four-channel digital input module
6 STB DDO 3410 24 VDC four-channel digital output module
7 STB DDI 3610 24 VDC six-channel digital input module
8 STB DDO 3600 24 VDC six-channel digital output module
9 STB AVI 1270 +/-10 VDC two-channel analog input module
10 STB AVO 1250 +/-10 VDC two-channel analog output module
11 STB XMP 1100 island bus termination plate
The I/O modules have the following island bus addresses:
The PDM and the termination plate are not addressable (See Addressable Modules,
p. 46), so they exchange neither data objects nor status objects with the fieldbus
master.
I/O Model Module Type Module’s Island Bus Address
STB DDI 3230 two-channel digital input N1
STB DDO 3200 two-channel digital output N2
STB DDI 3420 four-channel digital input N3
STB DDO 3410 four-channel digital output N4
STB DDI 3610 six-channel digital input N5
STB DDO 3600 six-channel digital output N6
STB AVI 1270 two-channel analog input N7
STB AVO 1250 two-channel analog output N8
