STB NIP 2212 Web Server
890USE17700 April 2004 97
Sample I/O Data

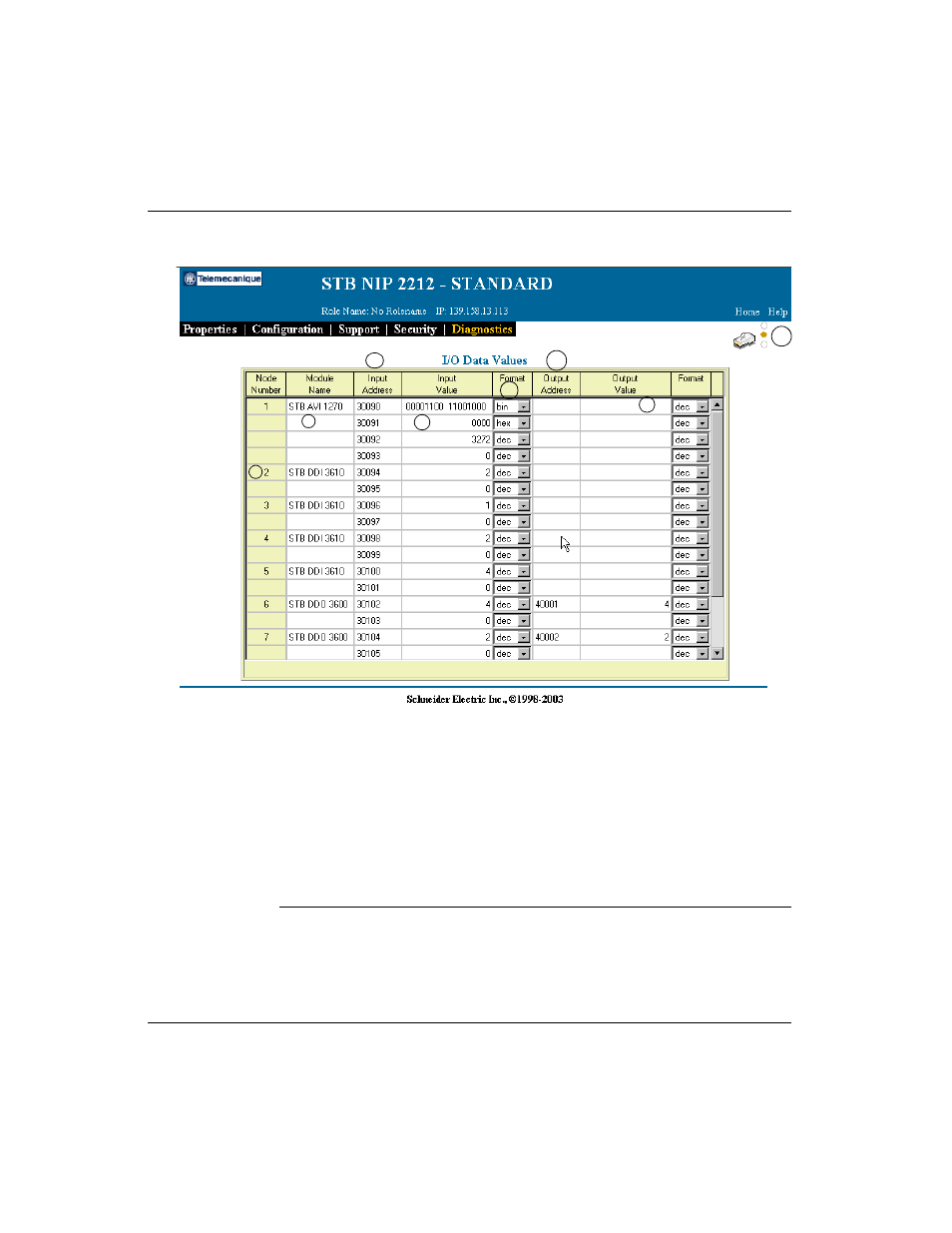

Values Web Page A sample I/O Data Values web page appears in the following figure:
1 module’s island bus node address
2 Advantys STB part number
3 Modbus register location(s) for input and status data
4 input values
5 format preference—decimal or hexadecimal
6 Modbus register location(s) for output data
7 output values
8 middle light is lit indicating Modbus activity
1
2
3
4
5
6
7
8
