Configuring the Island Bus
890USE17700 April 2004
47
An Example

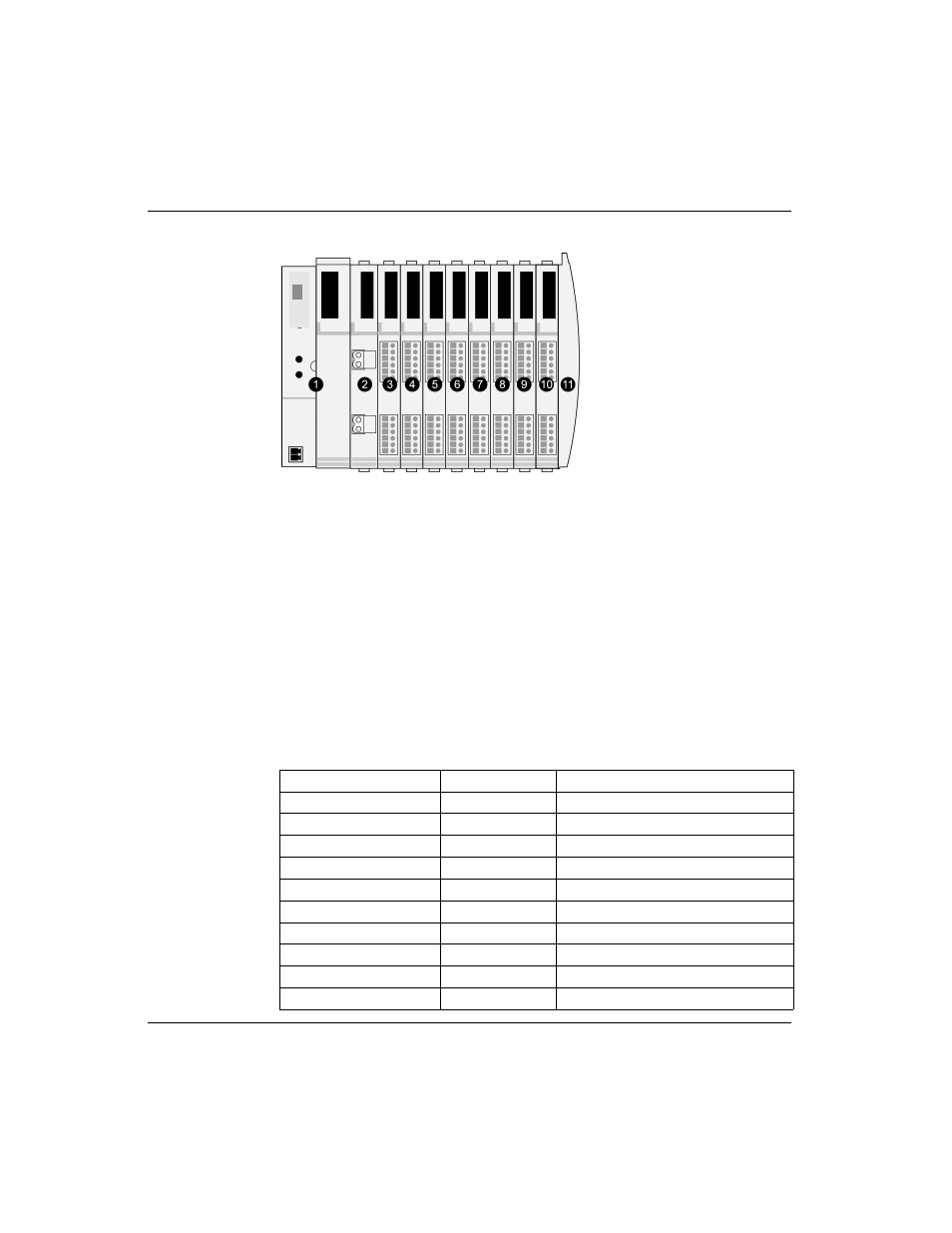

For example, if you have an island bus with eight I/O modules:
1 NIM
2 STB PDT 3100 24 VDC power distribution module
3 STB DDI 3230 24 VDC two-channel digital input module
4 STB DDO 3200 24 VDC two-channel digital output module
5 STB DDI 3420 24 VDC four-channel digital input module
6 STB DDO 3410 24 VDC four-channel digital output module
7 STB DDI 3610 24 VDC six-channel digital input module
8 STB DDO 3600 24 VDC six-channel digital output module
9 STB AVI 1270 +/-10 VDC two-channel analog input module
10 STB AVO 1250 +/-10 VDC two-channel analog output module
11 STB XMP 1100 island bus termination plate
The NIM would auto-address it as follows. Note that the PDM and the termination
plate do not consume island bus addresses:
Module
Physical Location Island Bus Address
NIM
1
127
STB PDT 3100 PDM
2
not addressed—does not exchange data
STB DDI 3230 input
3
1
STB DDO 3200 output
4
2
STB DDI 3420 input
5
3
STB DDO 3410 output
6
4
STB DDI 3610 input
7
5
STB DDO 3600 output
8
6
STB AVI 1270 input
9
7
STB AVO 1250 output
10
8
