Ethernet Statistics
Introduction The Ethernet Statistics web page reports status information and errors that are
related to data transmissions to and from the STB NIP 2212 over the Ethernet LAN.
Refresh Rate The statistics on this page are updated at the rate of one per second.
Sample Ethernet
Statistics Web

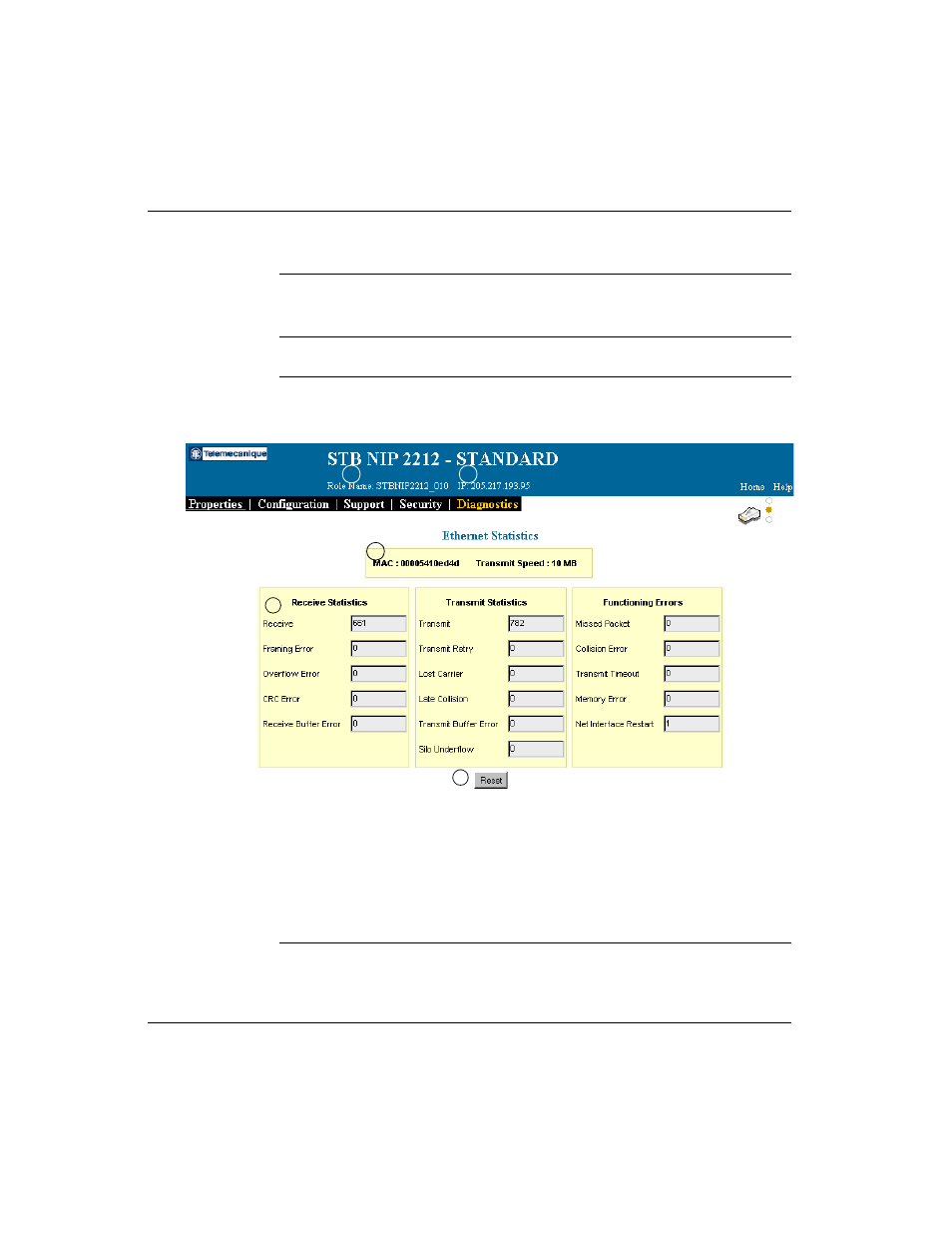

Page A sample Ethernet Statistics web page appears in the following figure:
1 unique role name for this STB NIP 2212.
2 unique IP address for this STB NIP 2212.
3 unique MAC address for this STB NIP 2212.
4 Ethernet statistics—click on the Help button to display a description for each Ethernet
statistic.
5 Reset button—clicking on this button returns all of the counters to 0.
1 2
3
4
5
