The STB NIP 2212 NIM
36 890USE17700 April 2004
Connectors Use either:
z
a screw type power connector, available in a kit of 10 (model STB XTS 1120)
z a spring clamp power connector, available in a kit of 10 (model STB XTS 2120)

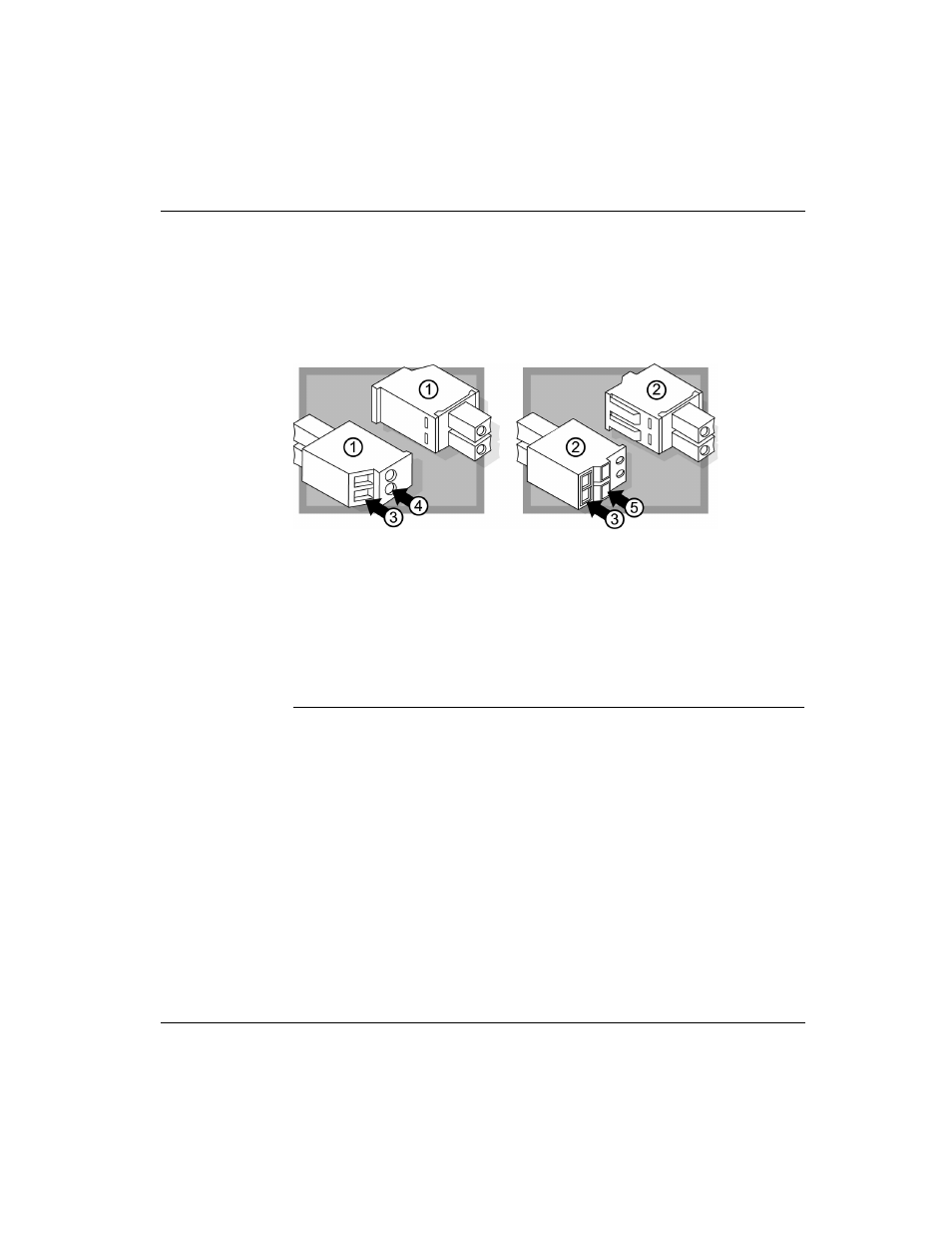

The following illustrations show two views of each power connector type. A front and
back view of the STB XTS 1120 screw type connector is shown on the left, and a
front and back view of the STB XTS 2120 spring clamp connector is shown on the
right:
1 STB XTS 1120 screw-type power connector
2 STB XTS 2120 spring clamp power connector
3 wire entry slot
4 screw clamp access
5 spring clamp actuation button
Each entry slot accepts a wire in the range 0.14 to 1.5 mm 2 (28 to 16 AWG).
Each connector has a 3.8 mm (0.15 in) pitch between the entry slots.
