3.2.4 Installing Drives in Bank E
Installation of drives in bank E is exactly the same as the procedure for installing
drives in bank D.
3.2.5 Disk Carriers
The disk carriers have two lights which enable you to determine the status of the
drive. Figure 15 shows a diagram of the lights and the spin down button, and
Table 11 explains their meanings.

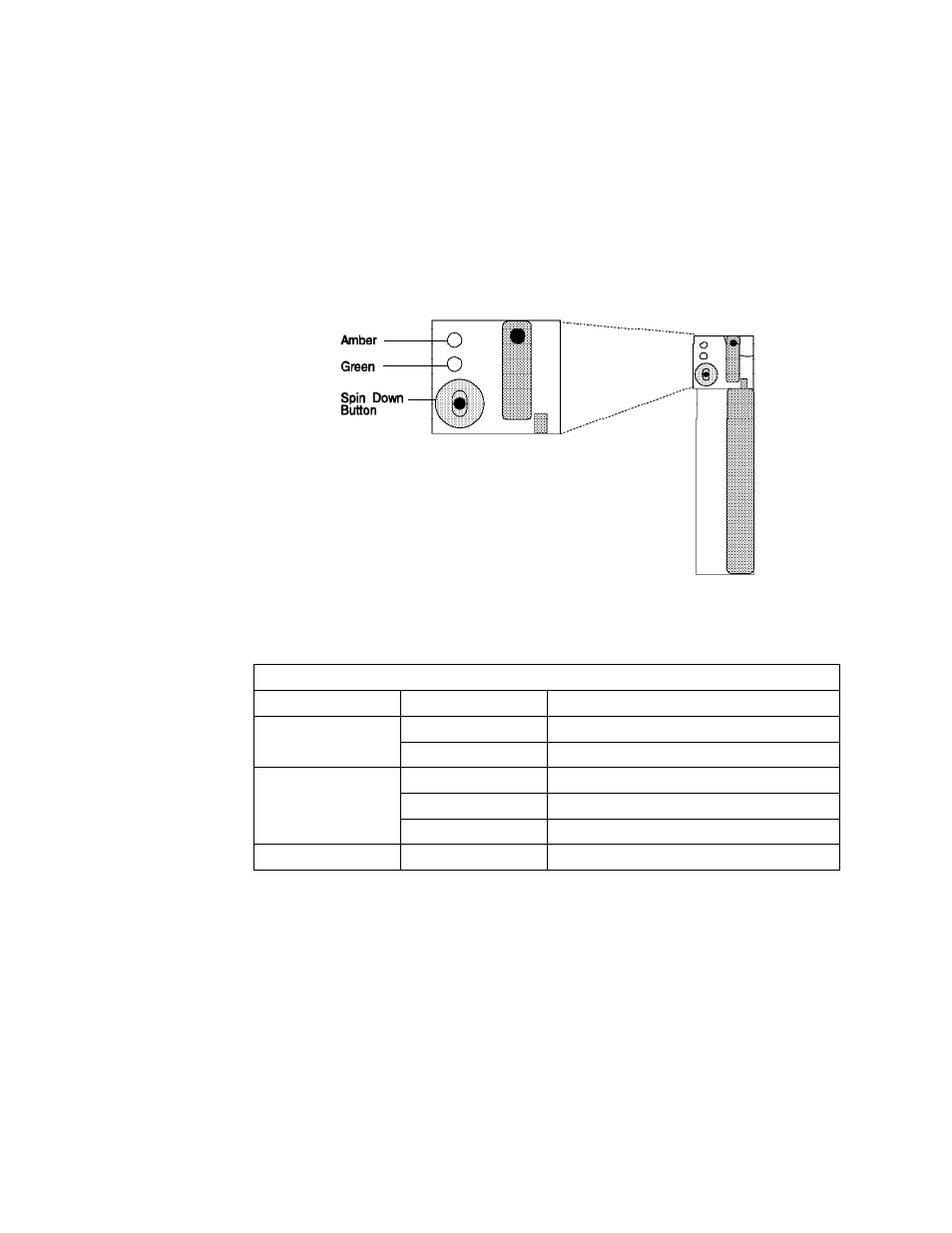

Figure 15. Disk Drive Light
During normal operation of AIX, both of the lights on the disk carrier will be on. If a
drive is removed from the ODM, for example, by using:
rmdev -d -l hdiskx
the drive will spin down, and the amber light will go out.
Table 11. Status Lights
Light or Button Status Definition
Amber On Drive spinning
Off Drive not spinning
Green On Power On
Off Power Off
Blinking Power Off/Drive identify
Spin down Depressed Spin down drive and remove power
