Pyromation Series 610 1_16 DIN - Manual (Page 29)

1 /
4
-DIN, 1 /
8
-DIN & 1 /
16
- DIN Controllers & Indicators - Product Manual
WARNING:
TO AVOID ELECTRICAL SHOCK, AC POWER WIRING MUST NOT BE CONNECTED TO THE
SOURCE DISTRIBUTION PANEL UNTIL ALL WIRING PROCEDURES ARE COMPLETED.
WARNING:
CHECK THE INFORMATION LABEL ON THE CASE TO DETERMINE THE CORRECT
VOLTAGE BEFORE CONNECTING TO A LIVE SUPPLY.
Note:

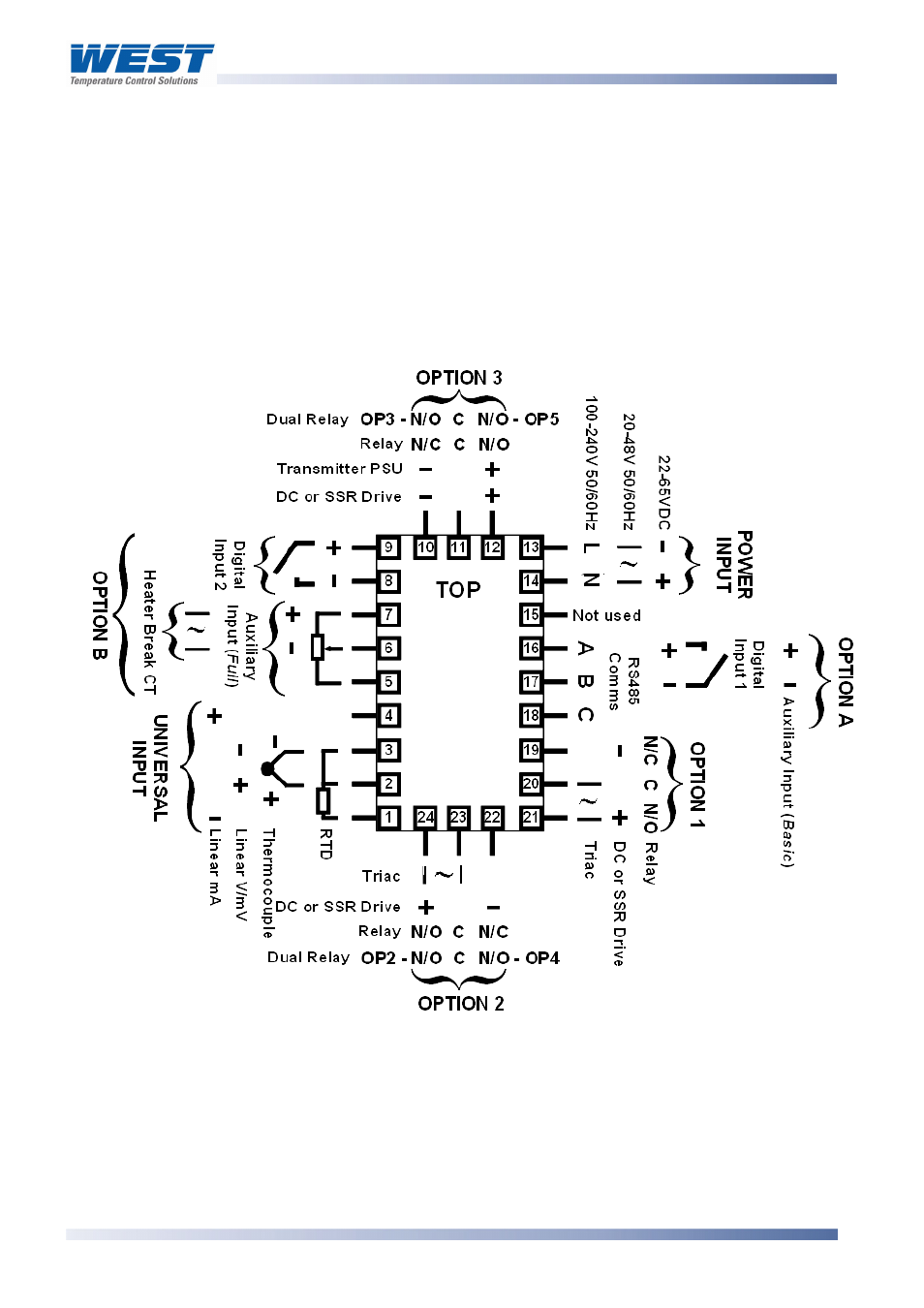

The wiring diagram below shows all possible combinations. The actual connections
required depend upon the features available on the model and the modules and options
fitted.
Figure 12. Rear terminals ( 1 /
4
-DIN & 1 /
8
-DIN Instruments)
Page 24
Connections 59305, Issue 6 – March 2006
