- DIN Controllers & Indicators - Product Manual
Option Slot 2
Connector PL4A
Option Slot A
Connectors PL5 & PL6
Option Slot B
Connectors PL2A,
PL2B & PL2C
Option Slot 1
Connectors PL7 & PL8
Option Slot 3
Connectors PL4B

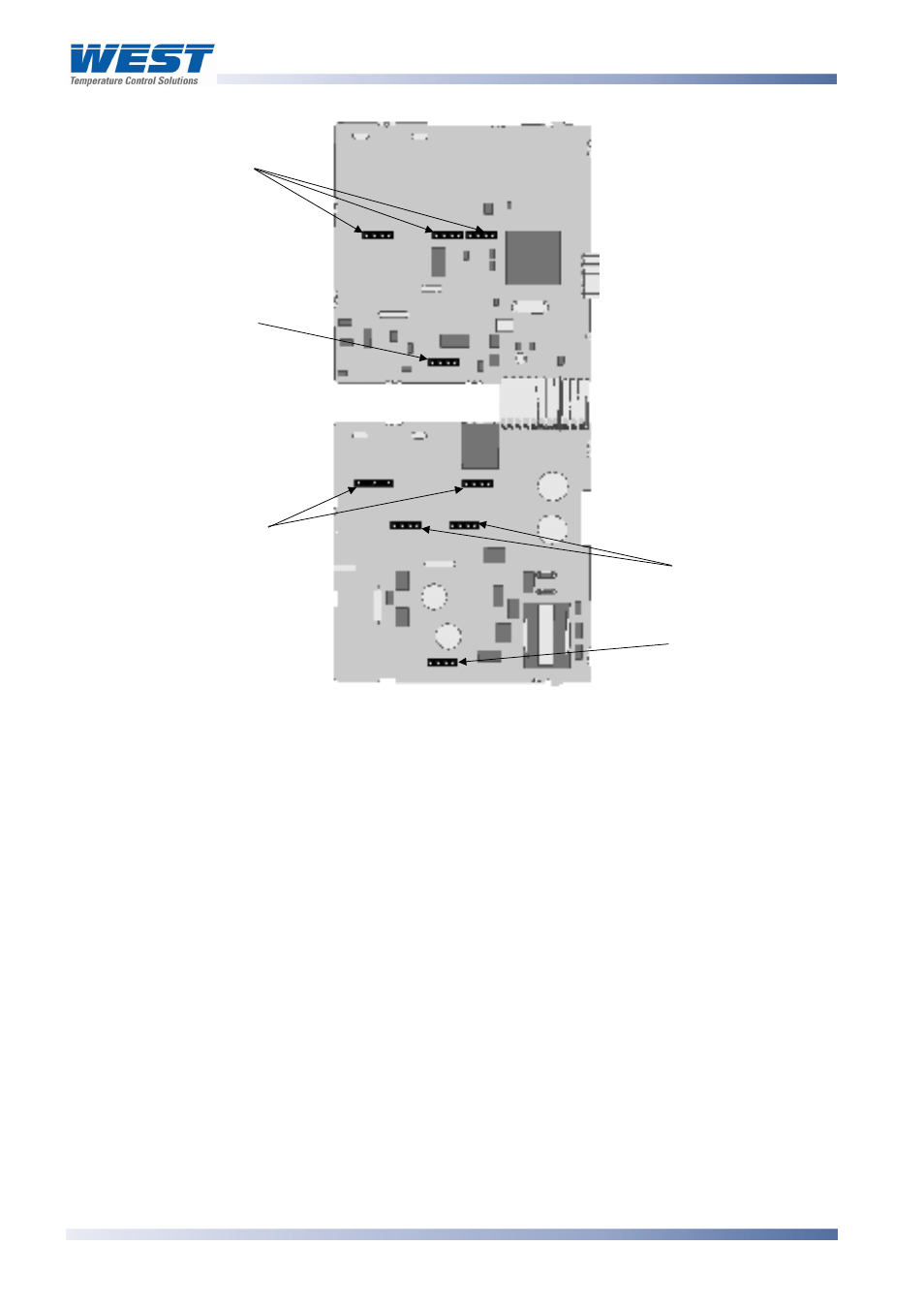

Figure 8. Option Module Connectors - 1 /
8
& 1 /
4
DIN Instruments
CAUTION:
Check for correct orientation of the modules and that all pins locate correctly into
the socket
Page 18
